Wireless LED Lighting Controls — Plexus™
The EOS Plexus system is our next-generation wireless lighting control platform, powered by Bluetooth mesh technology. Designed to eliminate dedicated control wiring, Plexus delivers enterprise-grade lighting management from a smartphone.
How Plexus Works
Plexus embeds a Bluetooth mesh radio into every compatible EOS luminaire driver. Once powered, each luminaire automatically discovers its neighbours and joins the mesh. Using the Plexus mobile app, an installer can commission zones, set scenes, configure daylight harvesting thresholds and assign occupancy sensor behaviours — all without a laptop, gateway or return site visit.
The mesh is self-healing: if a luminaire is removed or fails, messages automatically reroute through adjacent nodes. Over-the-air updates keep firmware current across the entire installation, and real-time energy data flows back to the app for monitoring, reporting and optimisation.

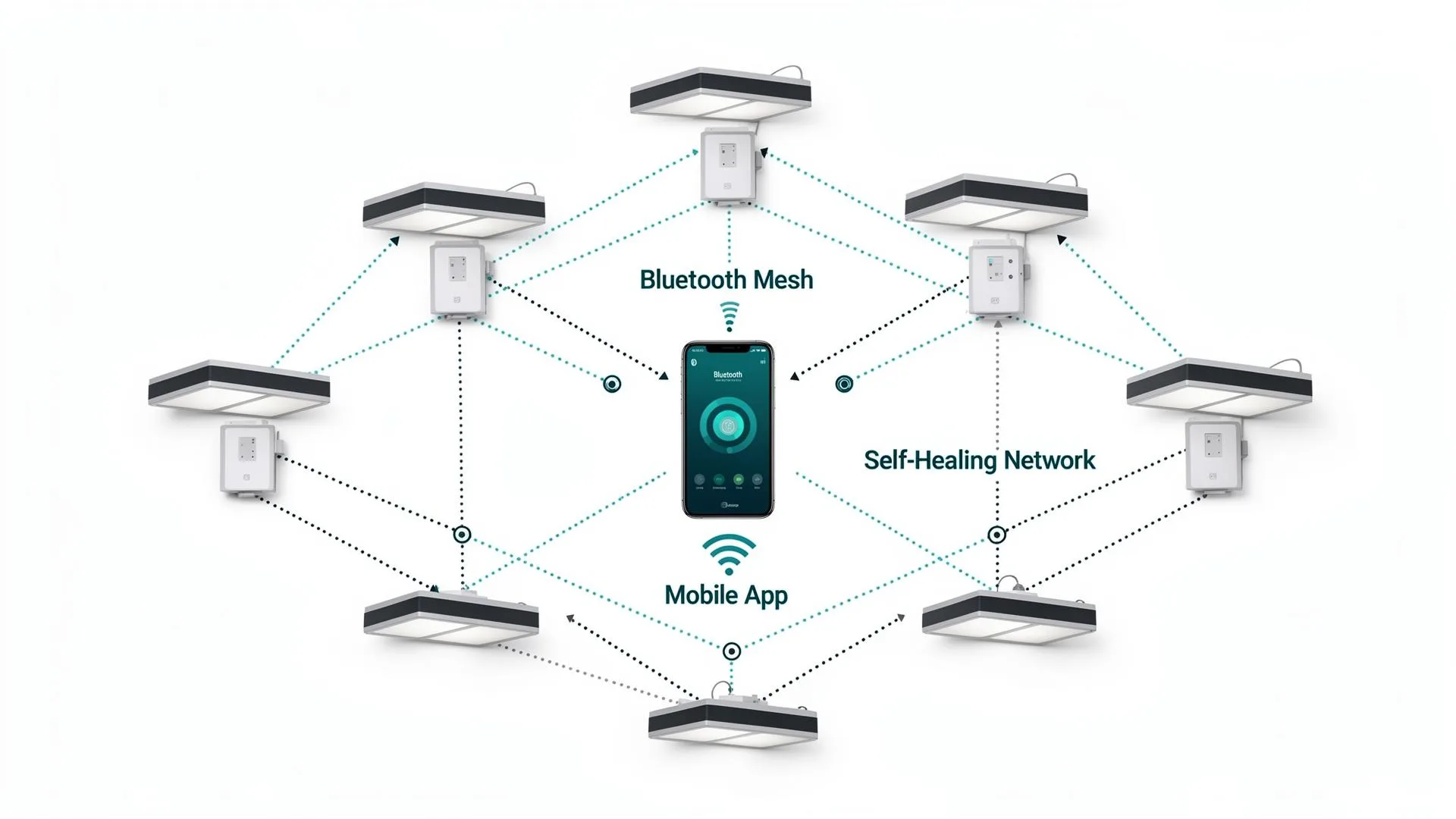

Mesh Network Architecture
Every Plexus-enabled luminaire acts as a node in a self-healing Bluetooth mesh — controlled directly from your smartphone with no gateway required.
Why Specify Plexus
No Wiring Overhead
Eliminate dedicated control wiring entirely. Plexus uses Bluetooth mesh embedded in each luminaire, slashing installation time and material costs.
App-Based Commissioning
Commission zones, scenes and schedules from a mobile device in minutes — no specialist software or hardware needed on site.
Enterprise-Grade Security
Bank-level AES-128 encryption secures every message across the mesh. Device authentication prevents unauthorised access to your lighting network.
Energy Analytics
Real-time consumption data at luminaire level. Generate compliance reports, identify waste and track savings against your sustainability targets.
Scalable Architecture
From a single meeting room to an entire campus. The mesh grows organically — add luminaires at any time without redesigning the network.
Future-Proof Standard
Built on the open Bluetooth mesh standard adopted by the world's leading luminaire, driver and sensor manufacturers.
Technical Capabilities
- Bluetooth mesh networking for reliable, self-healing wireless communication across large installations
- No gateway required — luminaires communicate directly with each other over a decentralised mesh network
- Commission and configure the entire system from a smartphone or tablet using the Plexus app
- Individual and group control with smooth dimming, scene presets and automated scheduling
- Integrated daylight harvesting and occupancy sensing for maximum energy savings
- Over-the-air firmware updates ensure your system stays current without physical access to luminaires
- Globally interoperable Bluetooth mesh standard — no proprietary lock-in or vendor dependency
- Supports up to 32,000 nodes in a single network for campus-scale deployments
- Emergency luminaire monitoring and automated self-test reporting built in
- Real-time energy monitoring and analytics for compliance reporting and carbon reduction targets
Ready to Go Wireless?
Our controls team can walk you through Plexus, provide a demo and help you specify wireless control for your next project.
