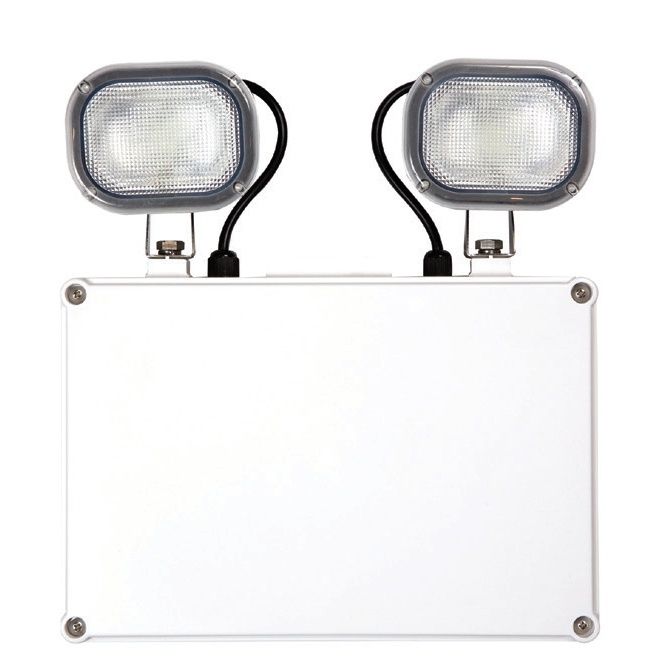

Escape Twinspot
The Escape Twinspot is an IP65 non-maintained twinspot with two directional LED heads delivering 610 lumens, ideal for damp and warehouse applications, with basic or DALI self-test operation.
Features
IP65
Emergency
CE Marked
UKCA Marked
Downloads
Specification
Battery6.4V 4.8AH LIFEPO4
Electrical ClassI
Emergency Output 3hr (lm)610
Ingress ProtectionIP65
Mains Voltage (V)230-240
Mains Frequency (Hz)50-60
Power Factor0.77
Ambient Temperature Ta (°C)0 To 35
Power Charging (W)3.8
Luminaire Options
Emergency3hr | 3hr Dali

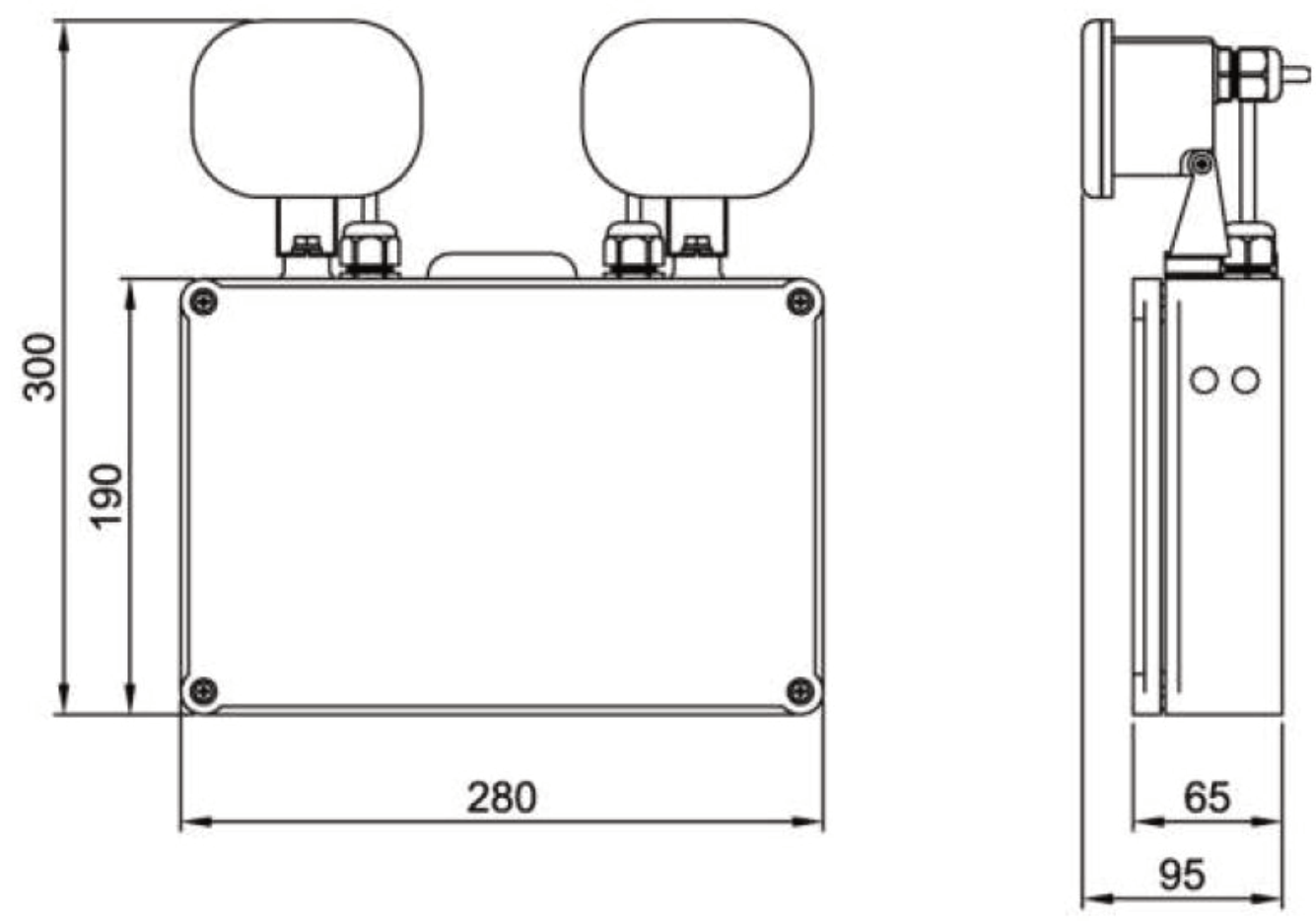

Dimensions
Select size (mm)
| Length (mm) | 280 |
| Width (mm) | 300 |
| Height (mm) | 95 |
| Nominal Weight (Kg) | 2 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Emergency | Schedule |
|---|---|---|
| 3hr | ||
| 3hr Dali |
Showing 1–2 of 2 filtered variants (2 total)
Show
Suitable Applications
Emergency
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
