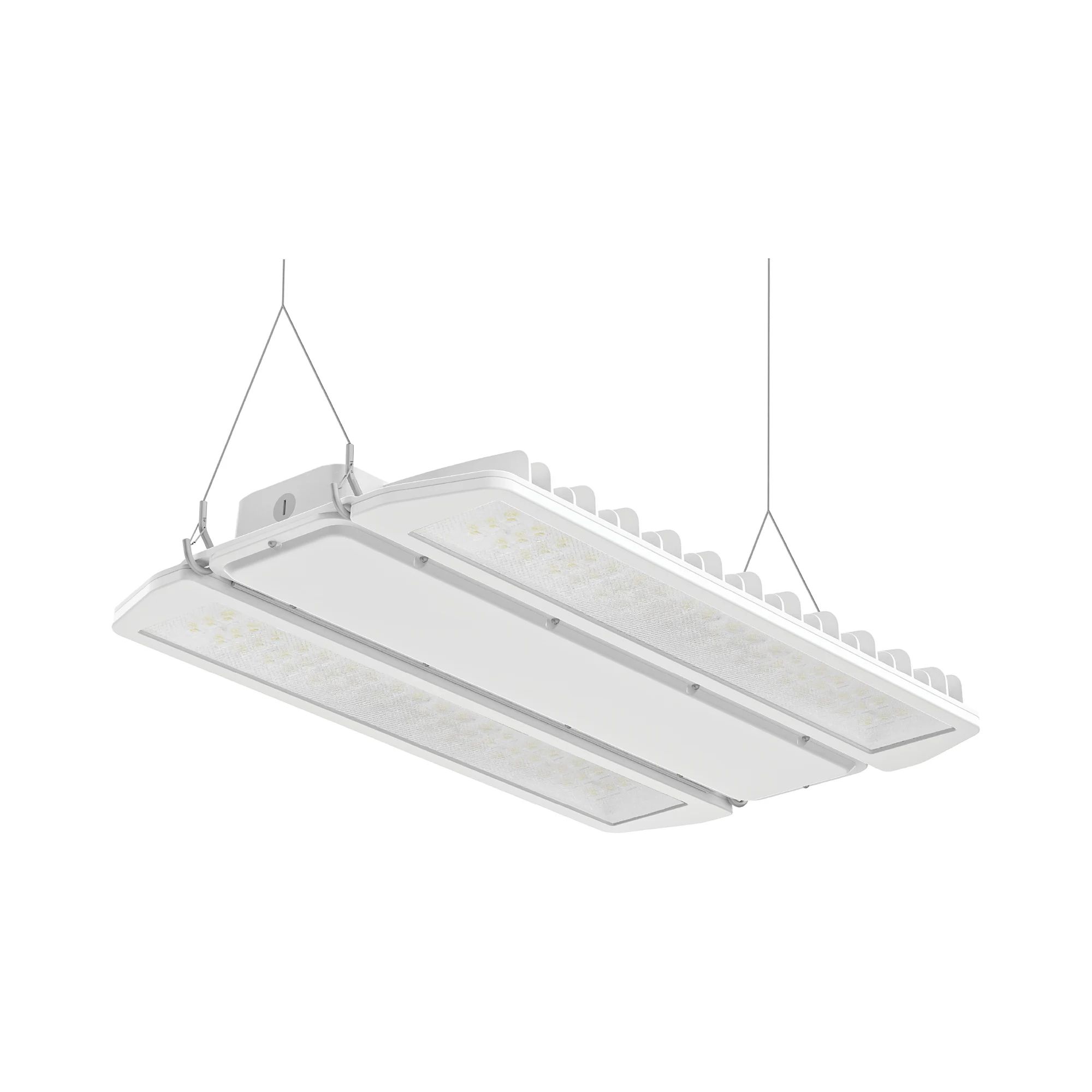

Contracta Lowbay
The Contracta Lowbay is an aluminium and polycarbonate low bay spanning selectable 7,000–28,000 lm at 4000K, featuring IP65/IK10 protection, 1-10V dimming as standard and an 80° beam, with PIR sensor and 3-hour emergency options for warehouses, workshops and industrial units.
Features
7 Year Warranty
IP65
Emergency
Sensor
Downloads
Specification
Colour Rendering (Ra)80
Colour Temperature (K)4000
Emergency Output 3hr (lm)700
Ingress ProtectionIP65
Impact ProtectionIK10
Life (>hours)50,000
Life RatingL90 / B10
Light Source Energy ClassA
Luminaire Efficacy (Llm/tcw)Up to 140
Luminaire Output (Llm)Varies by variant
Luminaire Power (Tcw)Varies by variant
Mains Voltage (V)200-240
Power Factor0.97
Minimum Operating Temperature (°C)-20
Maximum Operating Temperature (°C)+50
Warranty (years)7
Luminaire Options
SensorPIR
Driver1-10V | Dali
Emergency3HR | 3HR Self-test | 3HR Dali
AccessoriesSurface brackets | Pre-lead

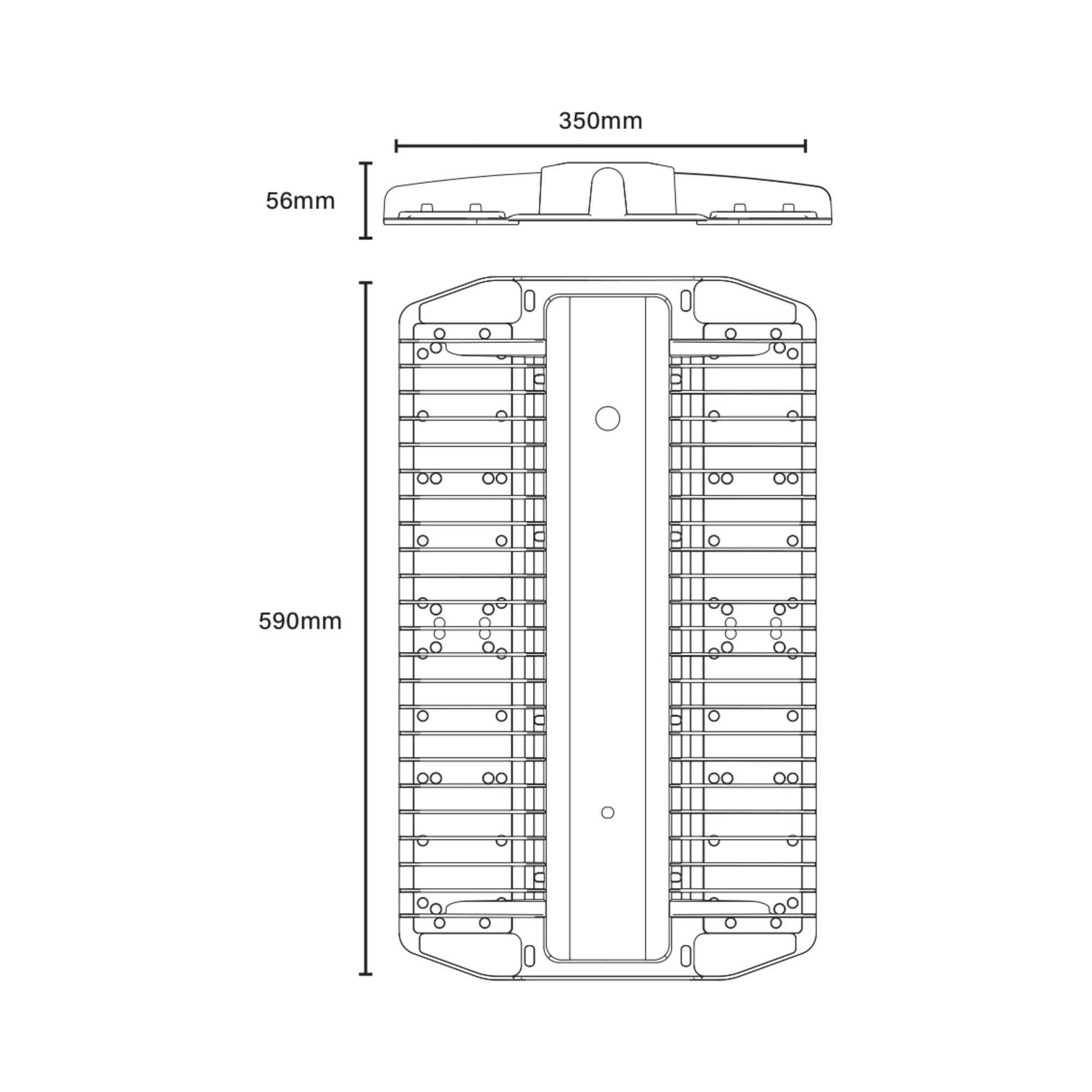

Dimensions
| Length (mm) | 590 |
| Width (mm) | 350 |
| Height (mm) | 56 |
| Nominal Weight (Kg) | 7.5 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Optic | Driver | Wattage | Efficacy | Emergency | Photometry | Schedule |
|---|---|---|---|---|---|---|---|---|---|---|
| 7000 | 10500 | 14000 | 17500 | 21000 | 24500 | 28000 | 4000 | White | 80° | Fixed | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 140 | — | |||
| 7000 | 10500 | 14000 | 17500 | 21000 | 24500 | 28000 | 4000 | White | 80° | Fixed | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 140 | 3hr | |||
| 7000 | 10500 | 14000 | 17500 | 21000 | 24500 | 28000 | 4000 | White | 80° | Fixed | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 140 | — | |||
| 7000 | 10500 | 14000 | 17500 | 21000 | 24500 | 28000 | 4000 | White | 80° | Fixed | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 140 | 3hr | |||
Showing 1–4 of 4 filtered variants (4 total)
Show
Suitable Applications
Data CentresIndustrial & Logistics
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
