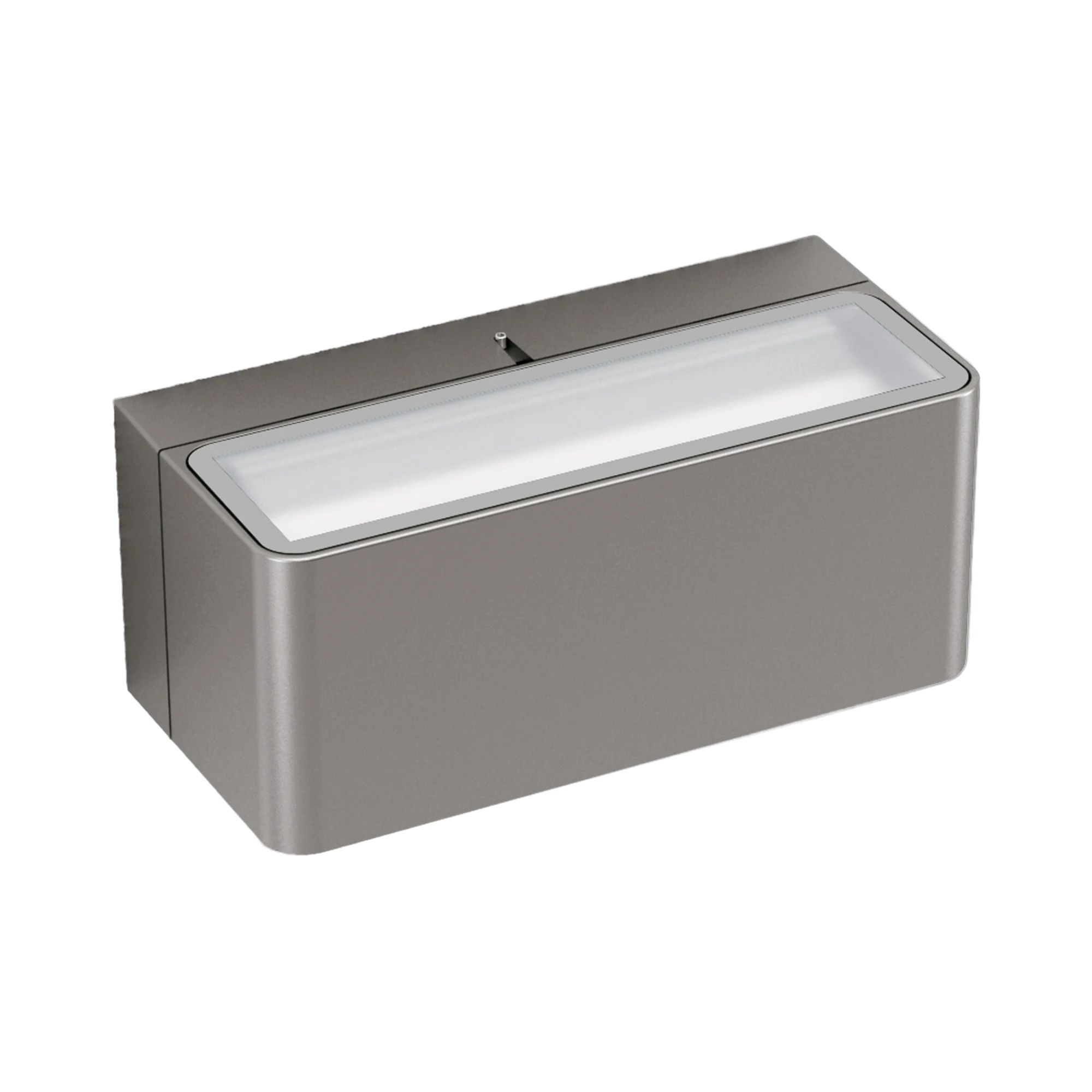

Brick 1556
A clean-lined rectangular die-cast aluminium wall light with 4mm tempered glass, delivering 1,610–1,700 lm of direct and indirect light to wash façades, entrances and stairways, rated IP65 and IK08 in 3000K or 4000K and finished in white, grey or graphite.
Features
IP65
IK08
CE Marked
Downloads
Specification
CoatingPolyester powder coat, uv-stabilised
Colour Rendering (Ra)80
Colour Temperature (K)3000 - 4000
Diffuser4mm Toughened glass
Electrical ClassI
Ingress ProtectionIP65
Impact ProtectionIK08
Life (>hours)50,000
Life RatingL90 / B10
Light Source Energy ClassC
Light Source TypeLED
Luminaire Efficacy (Llm/tcw)Up to 89
Luminaire Output (Llm)1610 - 1695
Luminaire Power (Tcw)19
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Power Factor0.90
Photobiological Safety ClassRG0
Reference StandardsEN 60598-1 / EN 60529
Warranty (years)3

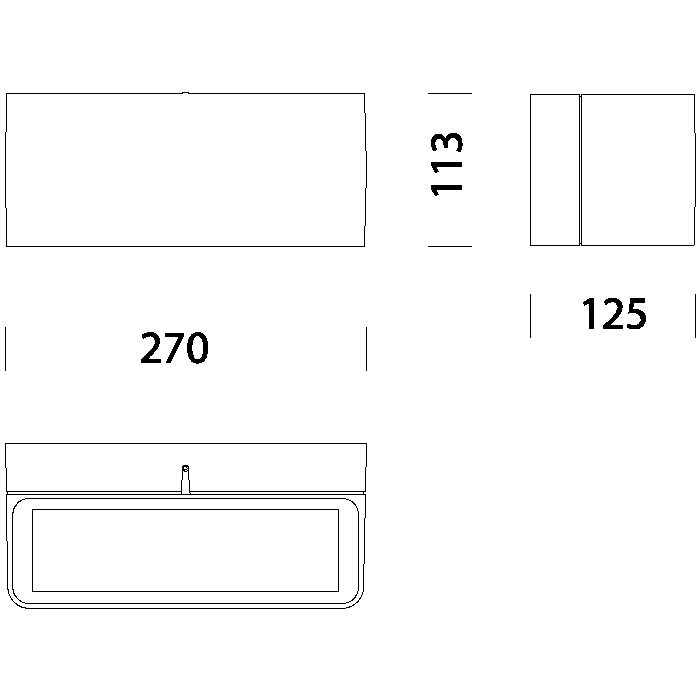

Dimensions
| Length (mm) | 270 |
| Width (mm) | 125 |
| Height (mm) | 113 |
| Nominal Weight (Kg) | 2.3 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Driver | Wattage | Efficacy | Schedule |
|---|---|---|---|---|---|---|---|
| 1610 | 3000 | Grey | Fixed | 19 | 85 | ||
| 1695 | 4000 | Grey | Fixed | 19 | 89 | ||
| 1610 | 3000 | White | Fixed | 19 | 85 | ||
| 1695 | 4000 | White | Fixed | 19 | 89 | ||
| 1610 | 3000 | Graphite | Fixed | 19 | 85 | ||
| 1695 | 4000 | Graphite | Fixed | 19 | 89 |
Showing 1–6 of 6 filtered variants (6 total)
Show
Suitable Applications
EducationHospitalityOfficeRetail
