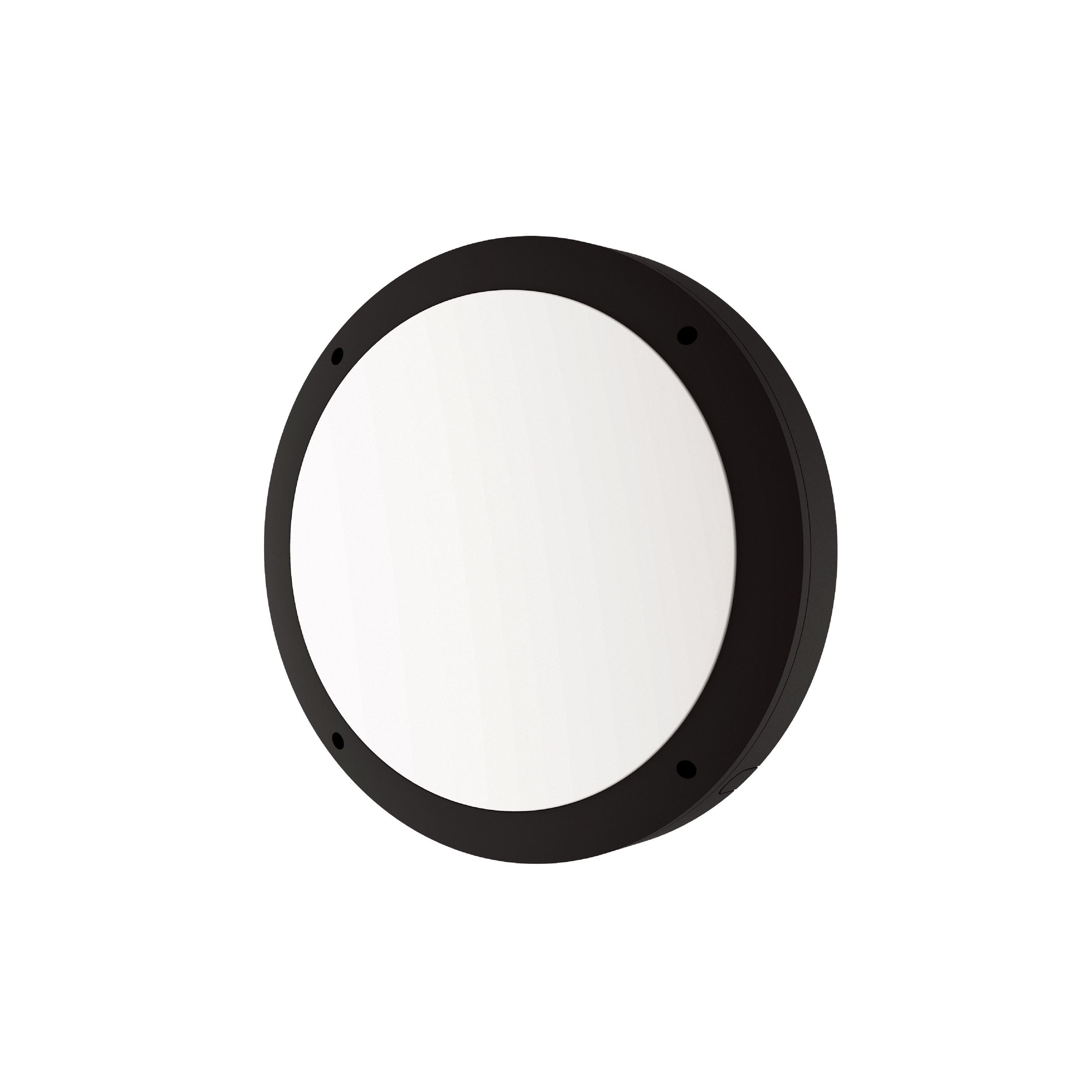

Contracta Moon
The Contracta Moon is a die-cast aluminium and polycarbonate exterior bulkhead in black, available in full-moon or eyelid styles with switchable 1,400–2,400 lm and selectable 3000K/4000K/6000K colour temperature, featuring IP65/IK10 protection and plug-and-play microwave sensor and 3-Hour emergency options for entrances, walkways and building perimeters.
Features
7 Year Warranty
IP65
Emergency
Sensor
Downloads
Specification
Colour Rendering (Ra)80
Colour Temperature (K)3000 - 6000
Emergency Output 3hr (lm)300
Ingress ProtectionIP65
Impact ProtectionIK10
Life (>hours)50,000
Life RatingL90 / B10
Light Source Energy ClassB
Luminaire Efficacy (Llm/tcw)Up to 120
Luminaire Output (Llm)1440 - 2400
Luminaire Power (Tcw)12 - 20
Mains Voltage (V)200-240
Power Factor>0.95
Minimum Operating Temperature (°C)-20
Maximum Operating Temperature (°C)+50
Warranty (years)7
Luminaire Options
Colour Temperature3000 | 4000 | 6000
DiffuserFull | Eyelid
SensorMicrowave
DriverDali
Emergency3HR | 3HR Self-test | 3HR Dali

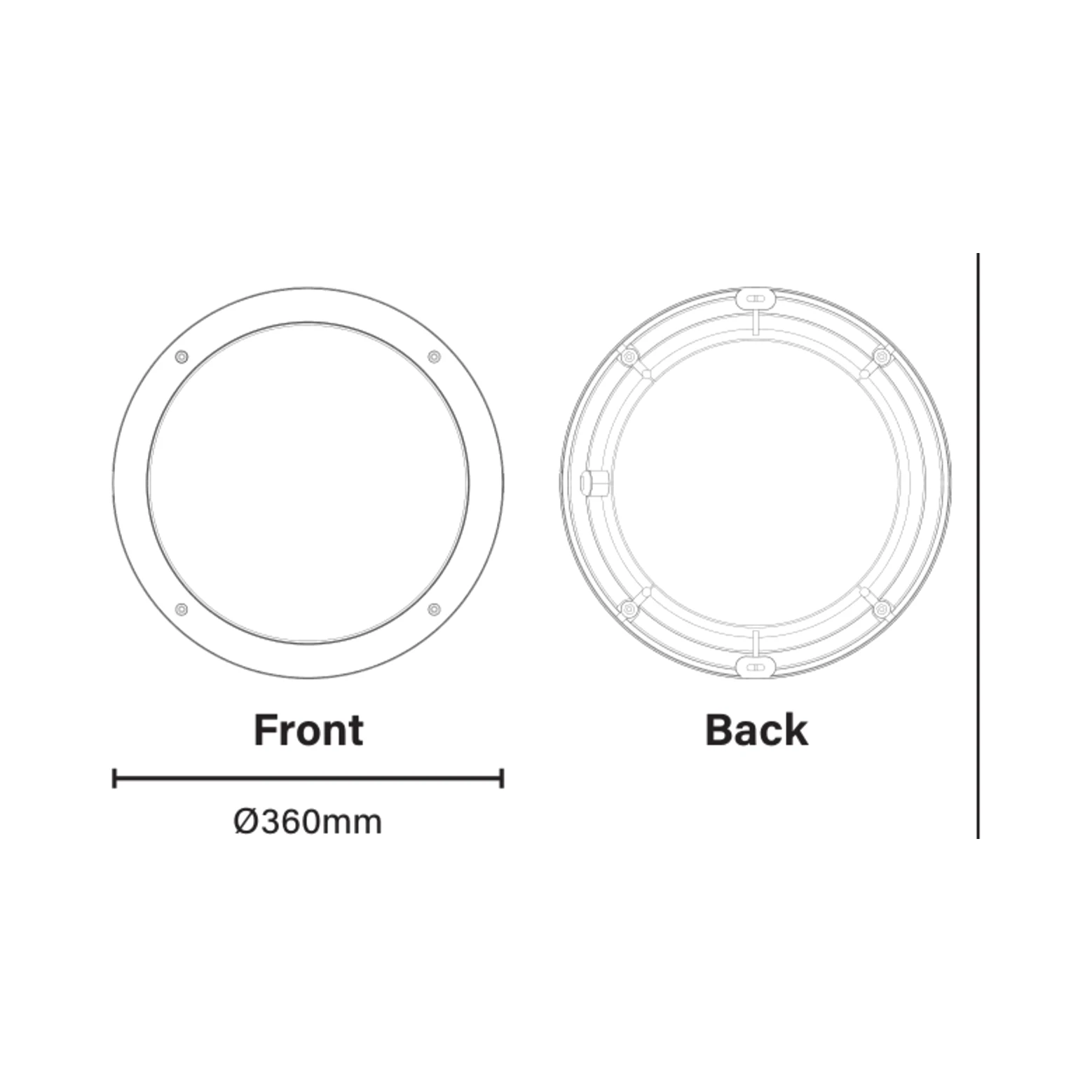

Dimensions
| Diameter (mm) | 360 |
| Nominal Weight (Kg) | 1.45 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Optic | Driver | Wattage | Efficacy | Emergency | Schedule |
|---|---|---|---|---|---|---|---|---|---|
| 1440 | 1800 | 2040 | 2400 | 3000 | 4000 | 6000 | Black | 120° | Fixed | 12 | 15 | 17 | 20 | 120 | — | ||
| 1440 | 1800 | 2040 | 2400 | 3000 | 4000 | 6000 | Black | 120° | Fixed | 12 | 15 | 17 | 20 | 120 | 3hr Self test | ||
| 1440 | 1800 | 2040 | 2400 | 3000 | 4000 | 6000 | Black | 120° | Fixed | 12 | 15 | 17 | 20 | 120 | — | ||
| 1440 | 1800 | 2040 | 2400 | 3000 | 4000 | 6000 | Black | 120° | Fixed | 12 | 15 | 17 | 20 | 120 | 3hr Self test |
Showing 1–4 of 4 filtered variants (4 total)
Show
Suitable Applications
EducationHealthcareOfficeSocial Housing
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
