Microfloor 1670
Family variant: Microfloor · 1670

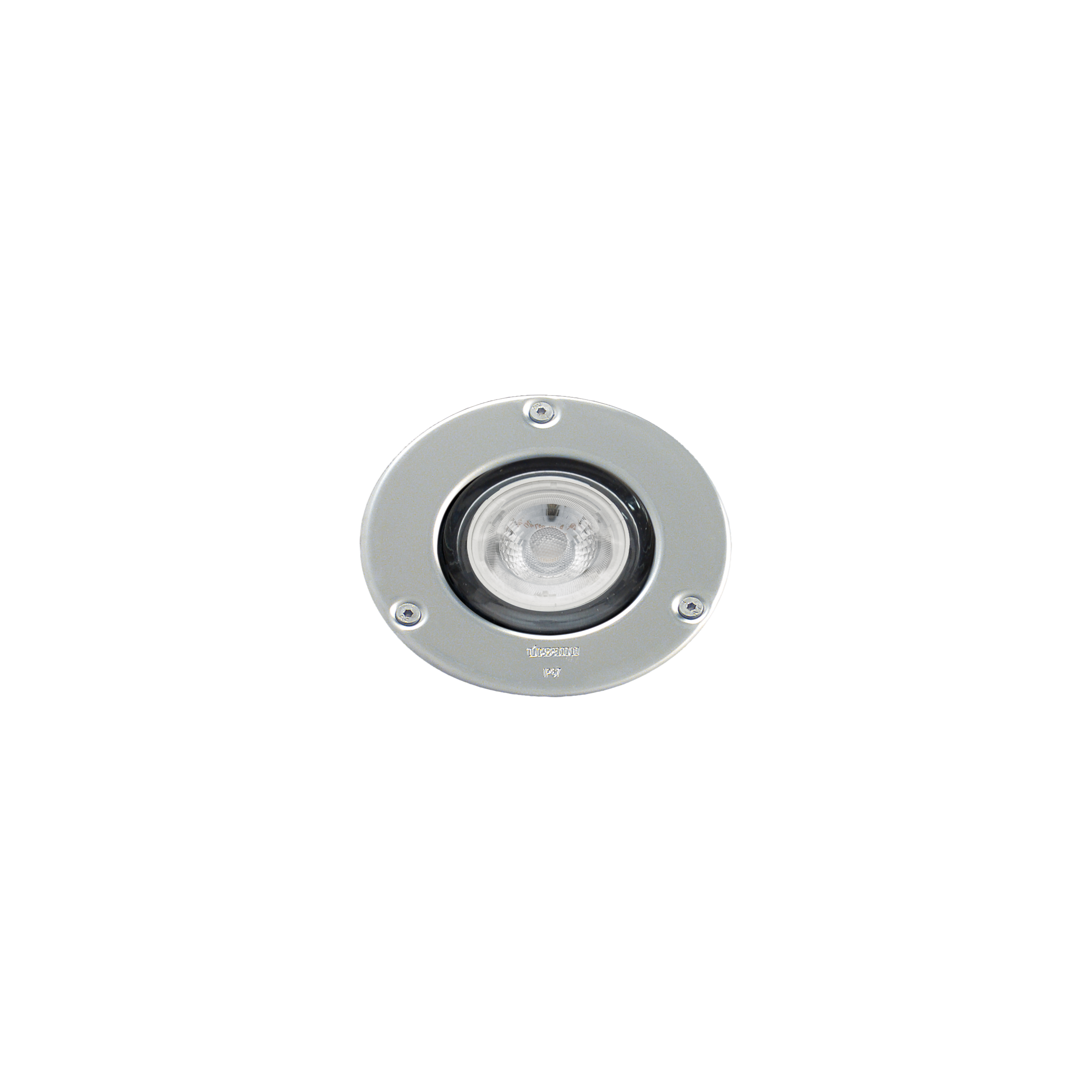

A miniature 120mm recessed ground light in fibreglass nylon with an aisi 316 stainless steel frame and tempered glass, rated IP67 and IK08, delivering a focused 38° beam in 3000K to uplight planting, columns and architectural details.
Features
IP67
IK08
CE Marked
Downloads
Specification
Colour Rendering (Ra)80
Colour Temperature (K)3000
DiffuserToughened glass
DriveoverYes
Electrical ClassI
Ingress ProtectionIP67
Impact ProtectionIK08
Installation NotesDriveway lamp, keep clear
Life (>hours)50,000
Life RatingL70 / B50
Light Source Energy ClassE
Light Source TypeLED Cob
Luminaire Efficacy (Llm/tcw)Up to 27
Luminaire Output (Llm)163
Luminaire Power (Tcw)6
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Power Factor0.95
Max Load (Kg)2000
Photobiological Safety ClassRG0
Reference StandardsEN 60598-1 / EN 60529
WalkoverYes
Warranty (years)3
Luminaire Options
Accessories314 Wall frame | 313 Outer shell

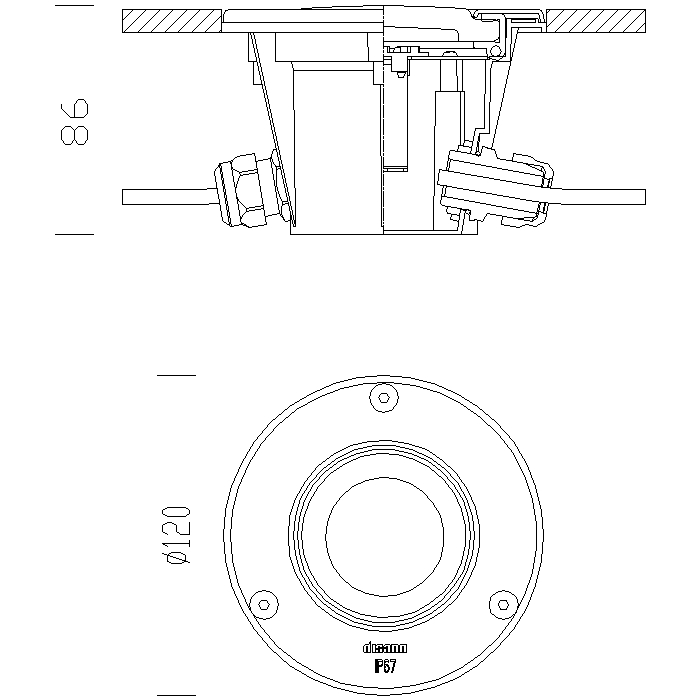

Dimensions
| Height (mm) | 86 |
| Diameter (mm) | 120 |
| Nominal Weight (Kg) | 0.5 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Optic | Driver | Wattage | Efficacy | Photometry | Schedule |
|---|---|---|---|---|---|---|---|---|---|
| 163 | 3000 | Stainless steel | 38° | Fixed | 6 | 27 | LDT | ||
Showing 1–1 of 1 filtered variant (1 total)
Show
Suitable Applications
Car ParkHospitalityIndustrial & LogisticsRetail
