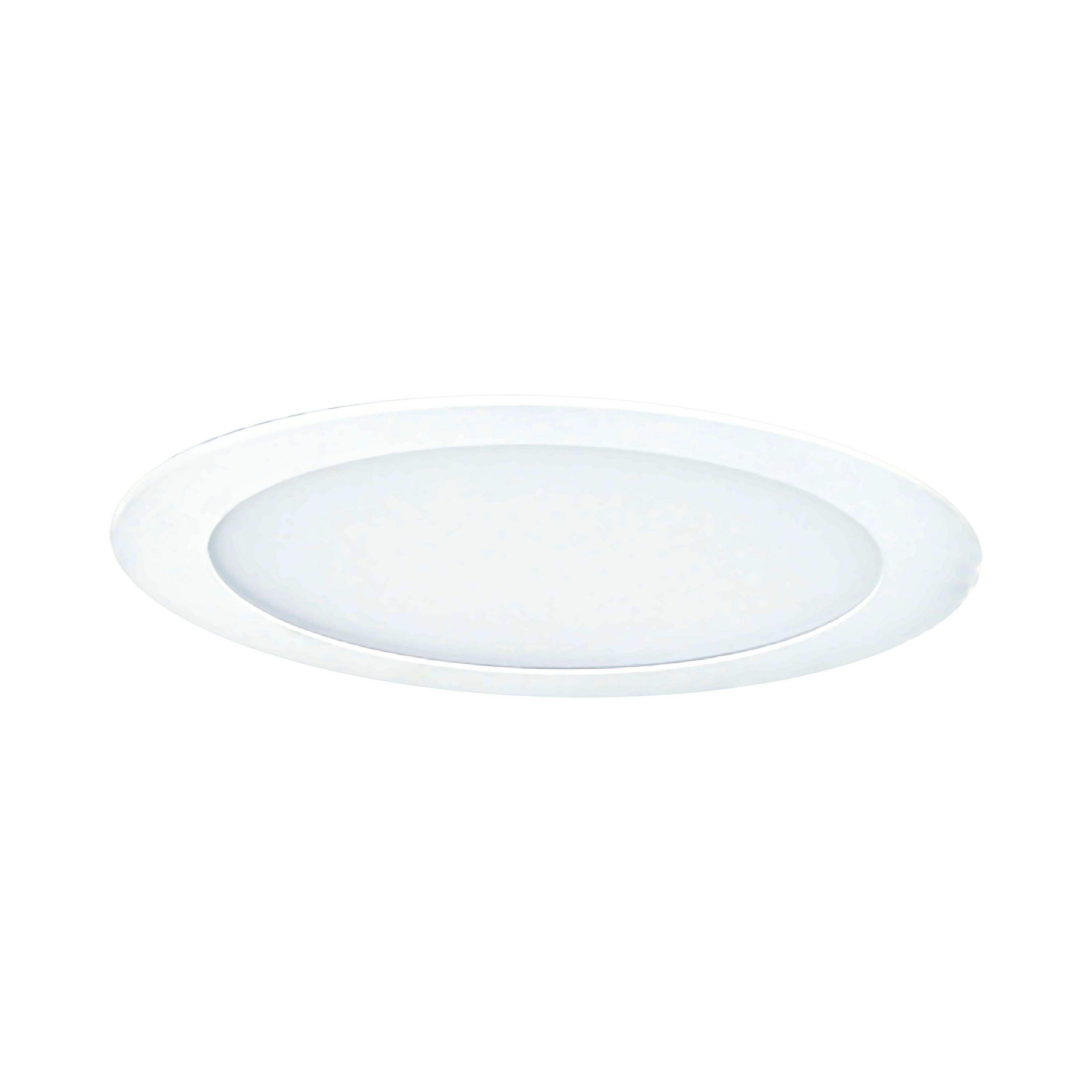

Contracta Edge Downlight 180
The Contracta edge downlight is an IP65 backlit recessed downlight in 110, 180 and 230mm diameters, delivering 660–3,375 lm with selectable 3000K/4000K/6000K colour temperature, a choice of opal or microprismatic low-glare diffuser, UGR<19 and tp(a) fire rating, with DALI dimming and 3-Hour emergency options for offices, retail and washrooms.
Available Finishes
White
Black
Features
10 Year Warranty
IP65
Emergency
Smart Controls
Made in Britain
CE Marked
UKCA Marked
Downloads
Specification
Colour Rendering (Ra)85
Emergency Output 3hr (lm)275 - 337
Emergency Output DALI (lm)275 - 337
Ingress ProtectionIP65
Impact Protection200-240
Life (>hours)50,000
Life RatingL90 / B10
Light Source Energy ClassC
Luminaire Efficacy (Llm/tcw)Up to 135
Luminaire Output (Llm)1100-1870 | 1350-2295
Luminaire Power (Tcw)10-17
Mains Frequency (Hz)50-60
Power Factor>0.9
Minimum Operating Temperature (°C)-20
Maximum Operating Temperature (°C)+65
UGR<19
Warranty (years)10
Luminaire Options
ColourWhite | Black
Colour Temperature3000 | 4000 | 6000
DriverDali | Wireless
Emergency3hr | 3hr Dali | 3hr Wireless
OptionsPre-lead & plug | Adapter plate

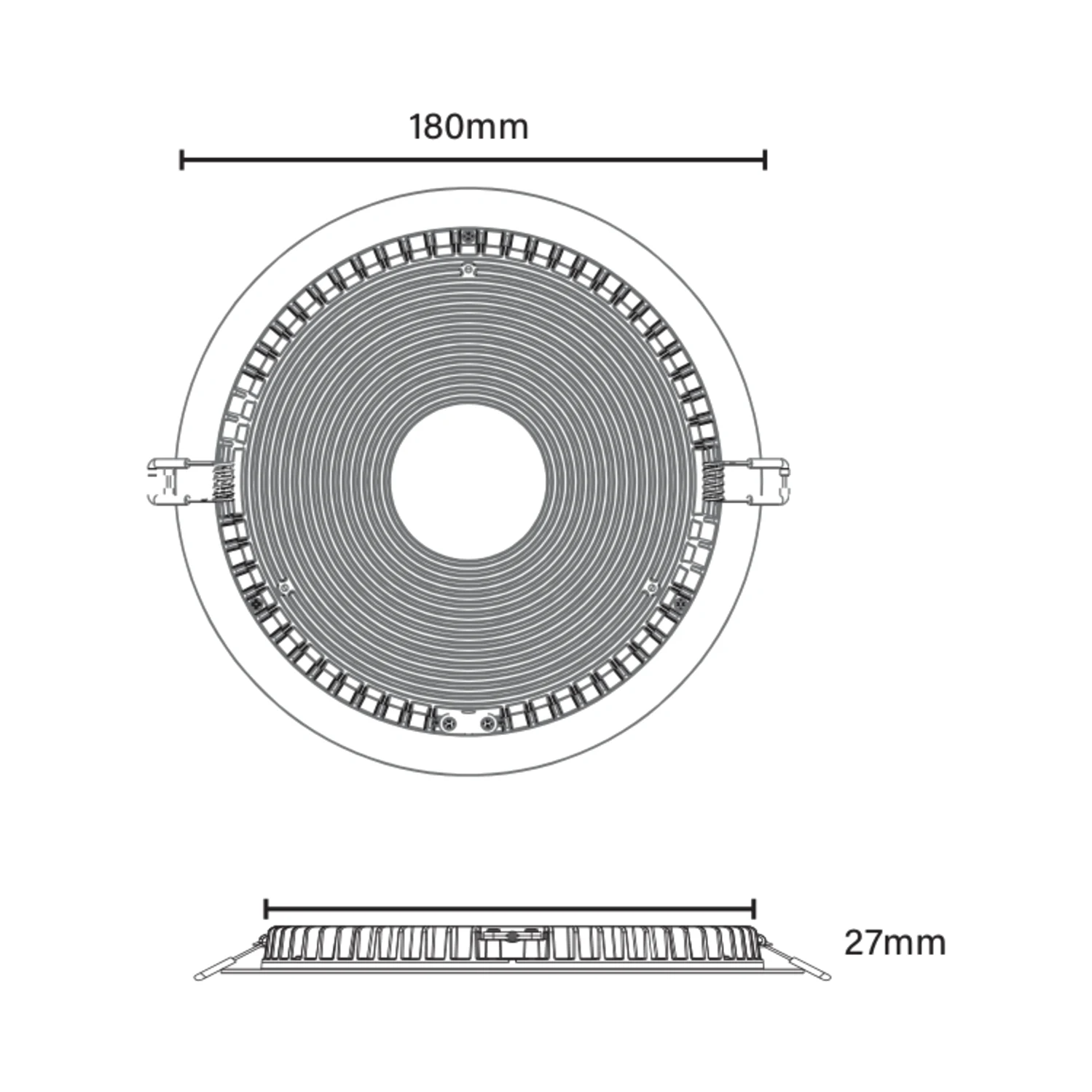

Dimensions
| Height (mm) | 27 |
| Cutout (mm) | 160 |
| Diameter (mm) | 180 |
| Nominal Weight (Kg) | 0.705 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Optic | Driver | Wattage | Efficacy | Emergency | Schedule |
|---|---|---|---|---|---|---|---|---|
| 1350-2295 | 3000 | 4000 | 6000 | 90° | Fixed | 10-17 | 135 | — | ||
| 1350-2295 | 3000 | 4000 | 6000 | 90° | Fixed | 10-17 | 135 | 3hr | ||
| 1350-2295 | 3000 | 4000 | 6000 | 90° | Dali | 10-17 | 135 | — | ||
| 1350-2295 | 3000 | 4000 | 6000 | 90° | Dali | 10-17 | 135 | 3hr Dali | ||
| 1100-1870 | 3000 | 4000 | 6000 | 90° | Fixed | 10-17 | 110 | — | ||
| 1100-1870 | 3000 | 4000 | 6000 | 90° | Fixed | 10-17 | 110 | 3hr | ||
| 1100-1870 | 3000 | 4000 | 6000 | 90° | Dali | 10-17 | 110 | — | ||
| 1100-1870 | 3000 | 4000 | 6000 | 90° | Dali | 10-17 | 110 | 3hr Dali |
Showing 1–8 of 8 filtered variants (8 total)
Show
Suitable Applications
EducationHospitalityOfficeSocial Housing
