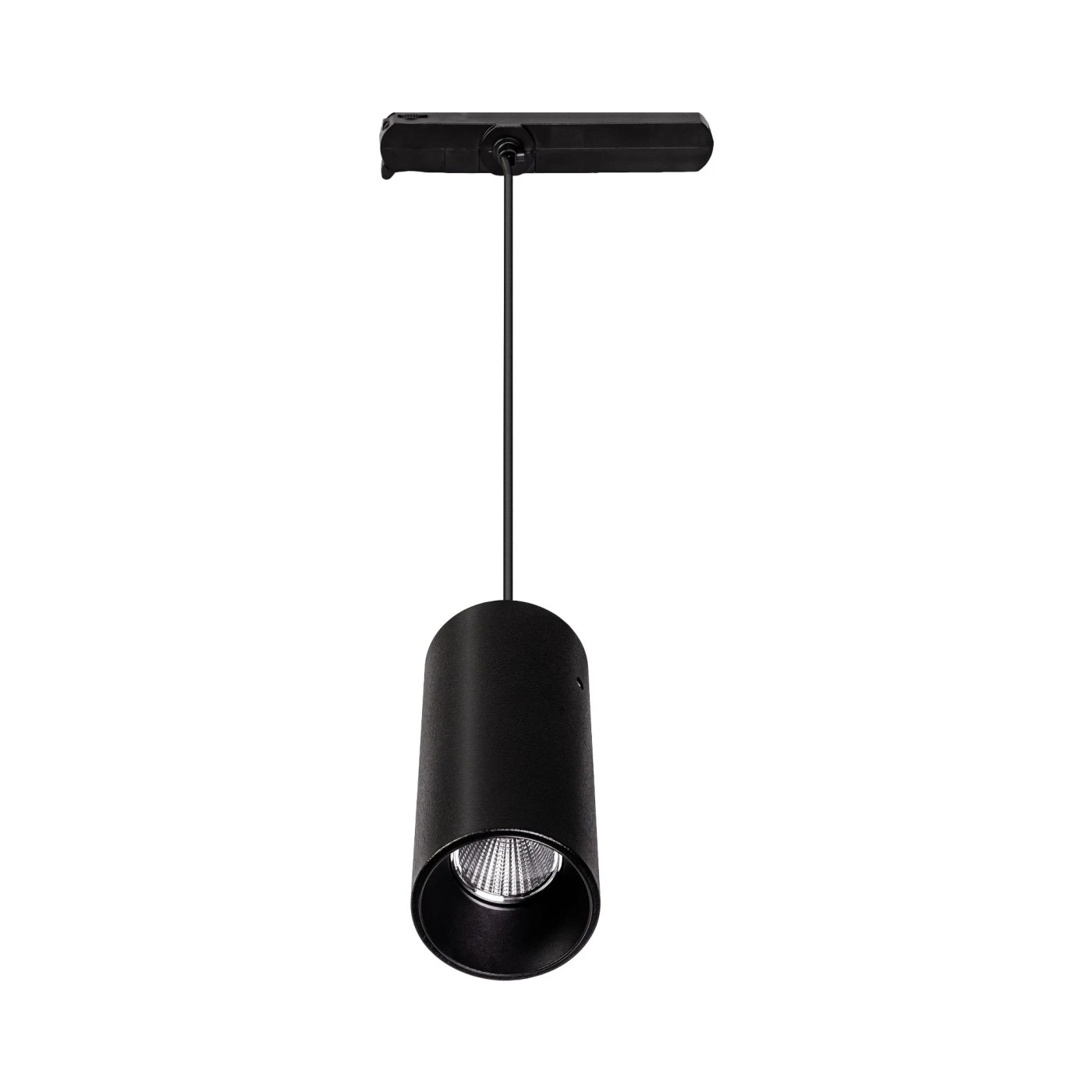

Picolo Track
An elegant tubular LED pendant downlight with a 76mm die-cast body and 146mm canopy, complementing the 130, 131, 132 and 133 recessed families to extend a consistent design language into pendant applications.
Available Finishes
White 9010
White 9016
Black
Grey
Any RAL
Features
5 Year Warranty
IP20
Any RAL Colour
Smart Controls
Made in Britain
CE Marked
UKCA Marked
Downloads
Specification
Colour Rendering (Ra)80 - 90
Colour Temperature (K)2700 - 4000
Electrical ClassII
Ingress Protection - FrontIP20
Ingress Protection - RearIP20
Life (>hours)55,000
Life RatingL90 / F10
Light Source Energy ClassC | D | E
Luminaire Efficacy (Llm/tcw)Varies by variant
Luminaire Output (Llm)Varies by variant
Luminaire Power (Tcw)6.5 - 13.5
Macadam (SDCM)3
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Minimum Operating Temperature (°C)-25
Maximum Operating Temperature (°C)+25 | +35
Warranty (years)5
Luminaire Options
ColourWhite 9010 | White 9016 | Black | Grey | Any RAL
Colour Rendering (Ra)80 | 90
Colour Temperature2700 | 3000 | 4000
Optics20° | 35°
ReflectorBlack baffle | White baffle | Gold baffle | Custom colour
DriverFixed output | Mains dimmable | Dali | Switch dim | Dsi | Wireless
OptionsCustom body lengths | Coloured flex | Custom optics
Dimensions
| Length (mm) | 180 |
| Diameter (mm) | 50 |
| Ceiling Rose Dimension | 146 X 50 |
| Nominal Weight (Kg) | 0.3 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Optic | Driver | Wattage | Efficacy | Schedule |
|---|---|---|---|---|---|---|---|---|
| 582 | 3000 | Black | 20° | Fixed | 6.5 | 90.9 | ||
| 582 | 3000 | Black | 20° | Dali | 6.5 | 90.9 | ||
| 582 | 3000 | Black | 40° | Fixed | 6.5 | 90.9 | ||
| 582 | 3000 | Black | 40° | Dali | 6.5 | 90.9 | ||
| 582 | 3000 | Black | 20° | Fixed | 6.5 | 90.9 | ||
| 582 | 3000 | Black | 20° | Dali | 6.5 | 90.9 | ||
| 582 | 3000 | Black | 40° | Fixed | 6.5 | 90.9 | ||
| 582 | 3000 | Black | 40° | Dali | 6.5 | 90.9 | ||
| 553 | 2700 | Black | 20° | Fixed | 8 | 69.9 | ||
| 553 | 2700 | Black | 20° | Dali | 8 | 69.9 | ||
| 553 | 2700 | Black | 40° | Fixed | 8 | 69.9 | ||
| 553 | 2700 | Black | 40° | Dali | 8 | 69.9 |
Showing 1–12 of 72 filtered variants (72 total)
Show
Page 1 of 6Suitable Applications
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
