Quazar 24v 208 IP65
Family variant: 208 LED · IP65

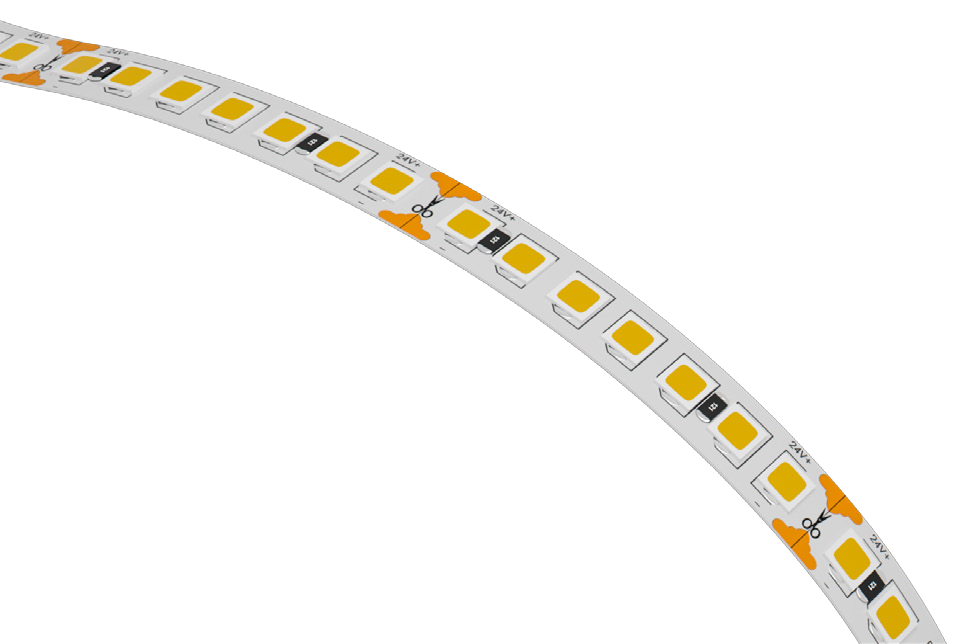

The quazar 208 is a high-output 24V flexible LED tape delivering up to 1,995lm/m at 12.7W/m (157lm/W) from 208 densely spaced leds/m with 38.45mm cut points, on 8mm 5m reels with industrial-grade adhesive backing, compatible with all dimming types, in 2700K–6000K with IP20 and IP65 options and a 3-year warranty.
Features
IP65
IP20
CE Marked
Tunable White
RGB+W
Downloads
Specification
Colour Rendering (Ra)>80 | >95
Colour Temperature (K)3000 - 6000
Dimming CompatibilityNon-dimmable, 0-10V, mains (triac)
Ingress ProtectionIP65
Input Voltage (V DC)24
Installation NotesPower from one end up to 5m; feed from middle up to 10m
Leds per Metre208
Light Source TypeLED - smd flexible tape
Lumen Output per Metre (Lm/m)1599 - 1815
Max Run Length (m)5 (one end) / 10 (centre feed)
Minimum Operating Temperature (°C)-20
Maximum Operating Temperature (°C)45
Power per Metre (W/m)12.7
Suggested DriversNon-dimmable: dri CV24 20 IP20 (1m), dri CV24 50 IP20 (3m), dri CV24 75 IP20 (5m), dri CV24 150 IP20 (10m); mains dimming: dri CV24 25TD IP20 (1m), dri CV24 50TD IP20 (3m), dri CV24 100TD IP20 (5m), dri CV24 200TD IP67 (10m) – 10m centre feed
Warranty (years)3

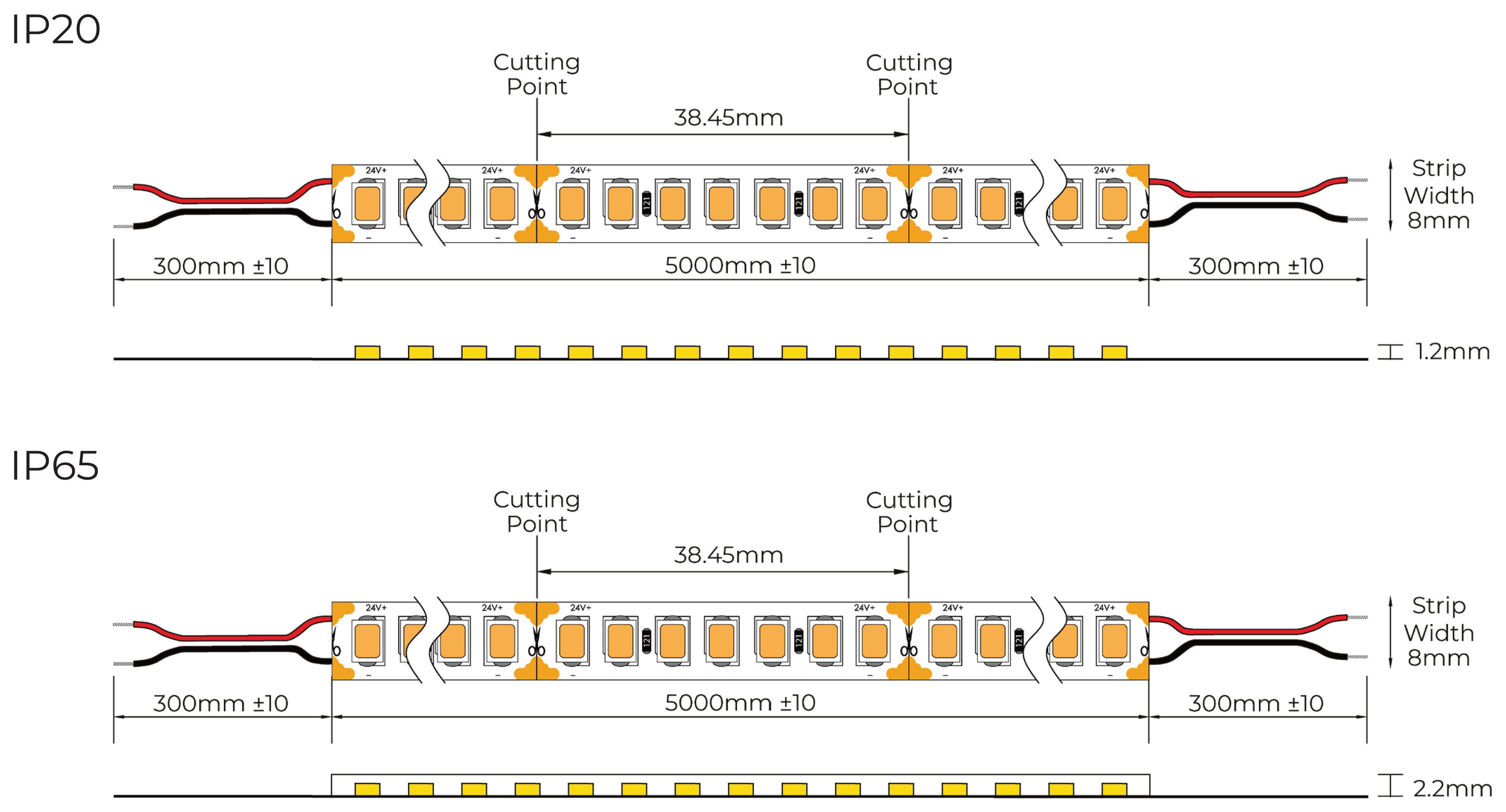

Dimensions
| Length (mm) | 5000 |
| Width (mm) | 8 |
| Height (mm) | 2.2 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Length | Output | CCT | Optic | Schedule |
|---|---|---|---|---|---|
| 5000 | LED | 3000 | 24° | ||
| 5000 | LED | 4000 | 24° | ||
| 5000 | LED | 6000 | 24° | ||
| 5000 | LED | 3000 | 24° | ||
| 5000 | LED | 4000 | 24° | ||
| 5000 | LED | 6000 | 24° |
Showing 1–6 of 6 filtered variants (6 total)
Show
Suitable Applications
EducationHospitalityOfficeRetail
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
