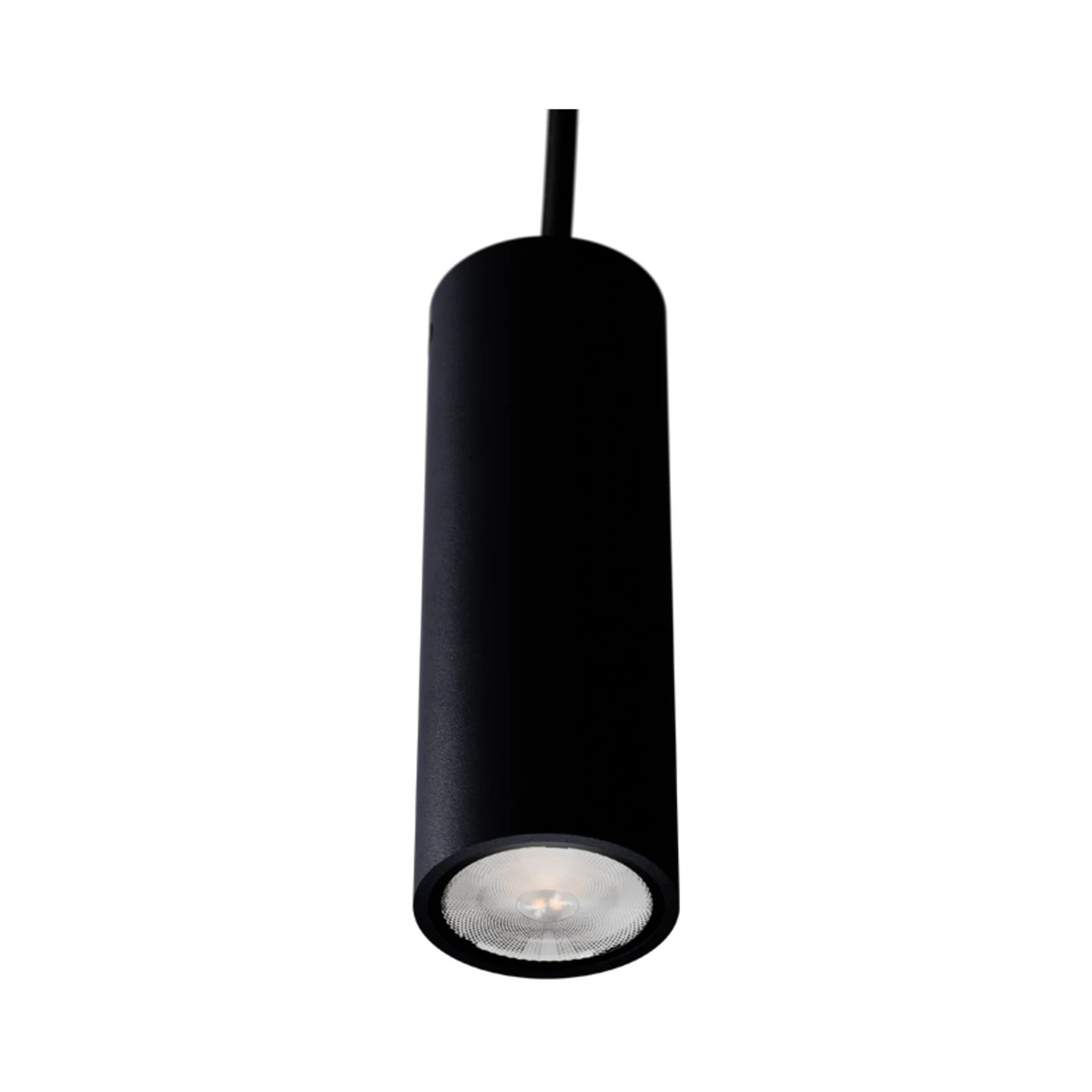

Tube 50 Suspended
The suspended version of the tube 50 — a sleek 57mm cylindrical LED pendant downlight delivering 1,130 lm at RA90 with 12°, 24° or 36° beams, supplied with a 3m pre-lead and colour-matched ceiling rose in white or black, with a DALI dimming option.
Available Finishes
White
Black
Any RAL
Features
5 Year Warranty
Any RAL Colour
Smart Controls
Made in Britain
CE Marked
UKCA Marked
Downloads
Specification
Colour Rendering (Ra)90
Colour Temperature (K)2700 - 4000
Electrical ClassI
Ingress Protection20
Life (>hours)50,000
Life RatingL70 / B10
Luminaire Efficacy (Llm/tcw)Up to 132.9
Luminaire Output (Llm)1130
Luminaire Power (Tcw)8.5
Macadam (SDCM)3
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Warranty (years)5
Luminaire Options
ColourWhite | Black | Any RAL
Colour Rendering (Ra)80 | 90
Colour Temperature2700 | 3000 | 4000
Optics12° | 24° | 36°
DriverFixed output | Dali | Wireless

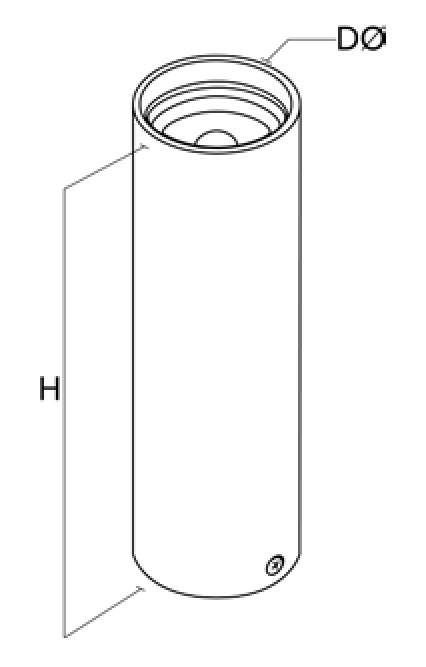

Dimensions
| Height (mm) | 170 |
| Diameter (mm) | 57 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Optic | Driver | Wattage | Efficacy | Schedule |
|---|---|---|---|---|---|---|---|---|
| 1130 | 2700 | Black | 12° | Fixed | 8.5 | 132.9 | ||
| 1130 | 2700 | Black | 12° | Dali | 8.5 | 132.9 | ||
| 1130 | 2700 | Black | 24° | Fixed | 8.5 | 132.9 | ||
| 1130 | 2700 | Black | 24° | Dali | 8.5 | 132.9 | ||
| 1130 | 2700 | Black | 36° | Fixed | 8.5 | 132.9 | ||
| 1130 | 2700 | Black | 36° | Dali | 8.5 | 132.9 | ||
| 1130 | 2700 | White 9016 | 12° | Fixed | 8.5 | 132.9 | ||
| 1130 | 2700 | White 9016 | 12° | Dali | 8.5 | 132.9 | ||
| 1130 | 2700 | White 9016 | 24° | Fixed | 8.5 | 132.9 | ||
| 1130 | 2700 | White 9016 | 24° | Dali | 8.5 | 132.9 | ||
| 1130 | 2700 | White 9016 | 36° | Fixed | 8.5 | 132.9 | ||
| 1130 | 2700 | White 9016 | 36° | Dali | 8.5 | 132.9 |
Showing 1–12 of 36 filtered variants (36 total)
Show
Page 1 of 3Suitable Applications
EducationHospitalityOfficeRetail
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
