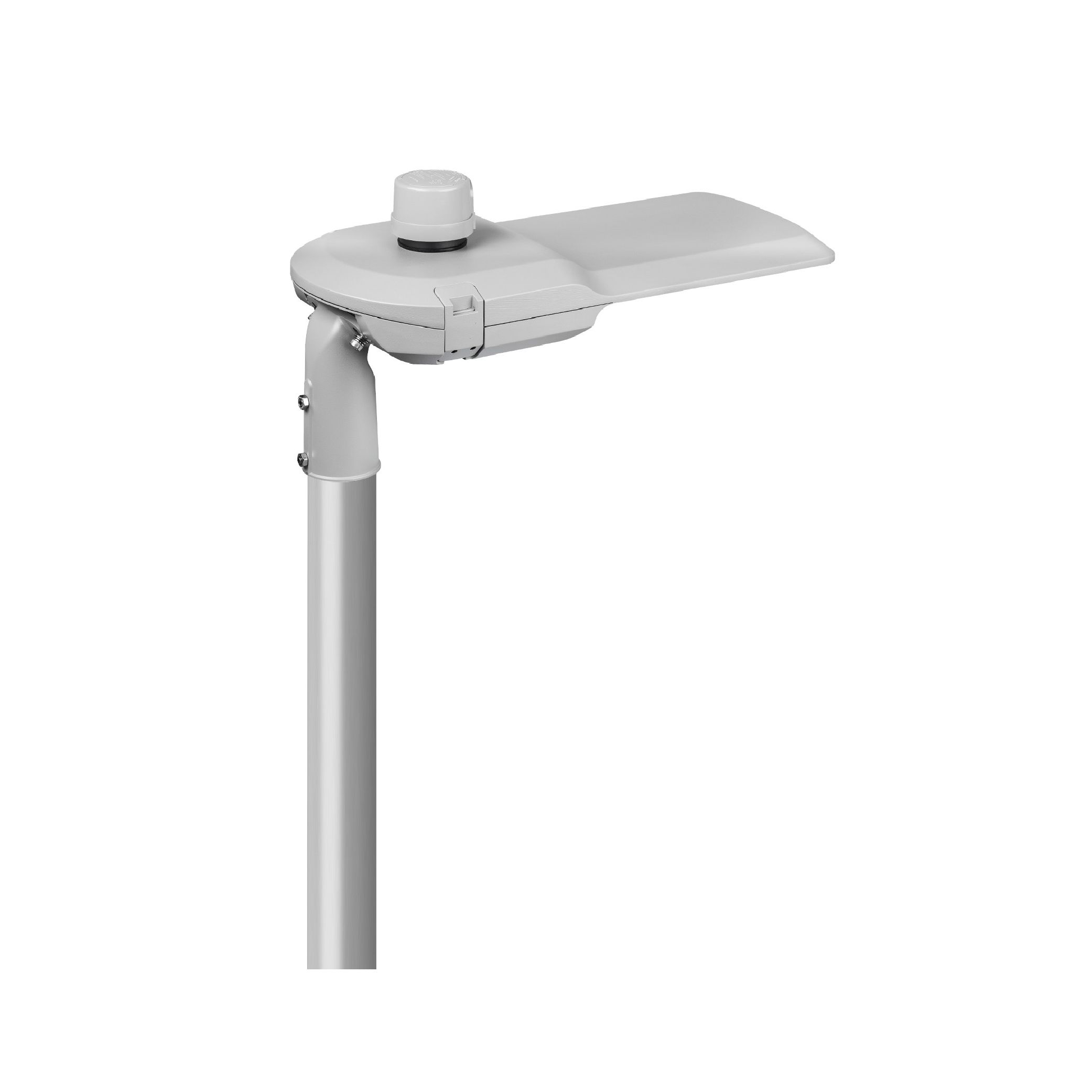

Contracta Street L
Family variant: L
The Contracta street is an aluminium and tempered-glass street light in medium, large and xlarge sizes spanning switchable 3,400–25,000 lm at up to 170 lm/w, with selectable 3 CCT colour temperature, an adjustable ±15° head, IP66/IK08 protection and 10KV surge protection, plus photocell and DALI options for roads, car parks and industrial estates.
Features
7 Year Warranty
IK08
Sensor
Downloads
Specification
Colour Rendering (Ra)70
Colour Temperature (K)2700 - 6500
Ingress ProtectionIP66
Impact ProtectionIK08 (glass)
Life (>hours)100,000
Life RatingL90 / B10
Light Source Energy ClassA
Luminaire Efficacy (Llm/tcw)Up to 170
Luminaire Output (Llm)11900 - 17000
Luminaire Power (Tcw)70 - 100
Mains Voltage (V)100-277
Power Factor>0.98
Mains Surge Protection (L-n)10KV
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)+50
Salt Spray Test720hr (35°)
Warranty (years)7
Luminaire Options
Colour Temperature2700 | 4000 | 6500
SensorPhotocell
DriverDali

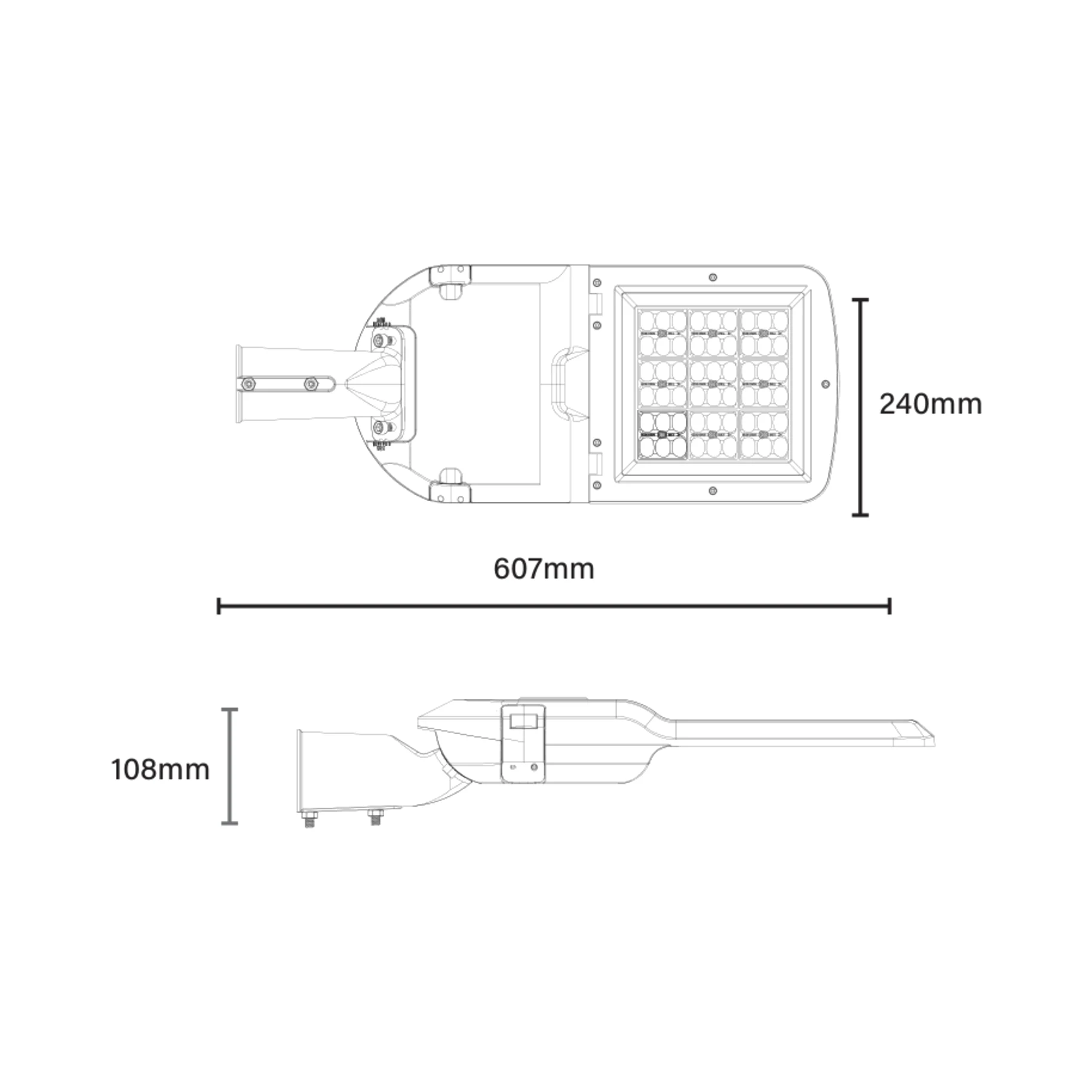

Dimensions
Select size (mm)
| Length (mm) | 607 |
| Width (mm) | 240 |
| Height (mm) | 108 |
| Nominal Weight (Kg) | 4.98 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Optic | Driver | Wattage | Efficacy | Photometry | Schedule |
|---|---|---|---|---|---|---|---|---|
| 11900 | 13600 | 15300 | 17000 | 2700 | 4000 | 6500 | 85° X 155° | Fixed | 70 | 80 | 90 | 100 | 170 | |||
| 11900 | 13600 | 15300 | 17000 | 2700 | 4000 | 6500 | 85° X 155° | Dali | 70 | 80 | 90 | 100 | 170 | |||
| 11900 | 13600 | 15300 | 17000 | 2700 | 4000 | 6500 | 85° X 155° | Fixed | 70 | 80 | 90 | 100 | 170 | |||
| 11900 | 13600 | 15300 | 17000 | 2700 | 4000 | 6500 | 85° X 155° | Dali | 70 | 80 | 90 | 100 | 170 | |||
Showing 1–4 of 4 filtered variants (4 total)
Show
Suitable Applications
Car ParkHighways & Transportation
