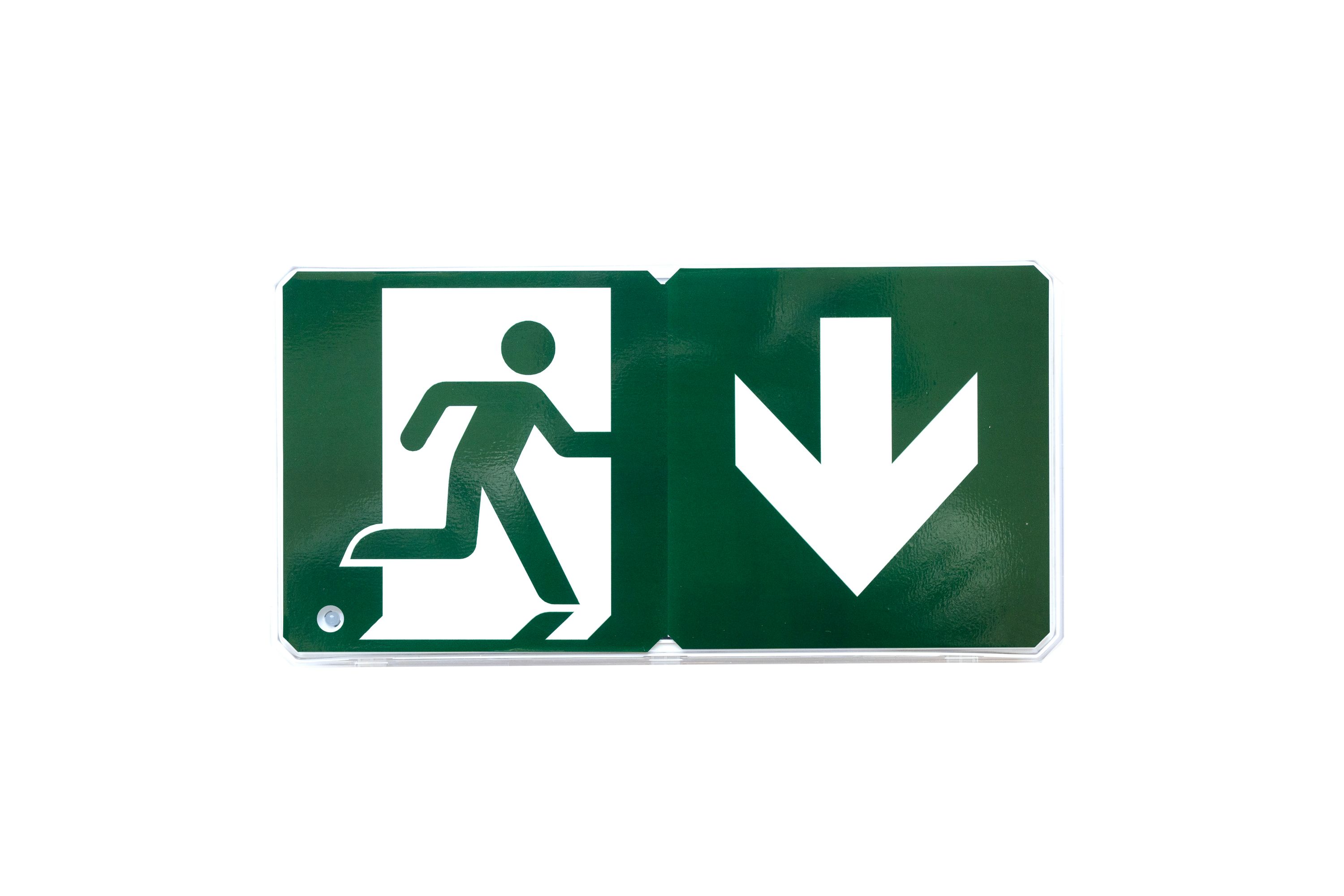

Escape Exit IP65
The Escape Exit IP65 is a compact IP65-Rated wall-mounted LED exit sign with a 25m viewing distance and ISO 7010 legends, available in maintained or DALI-2 self-test versions.
Features
IP65
Emergency
CE Marked
UKCA Marked
Downloads
Specification
Battery3.2V 3.8AH LIFEPO4
Charge Time (Hrs)24
Ingress ProtectionIP65
Mains Voltage (V)230-240
Mains Frequency (Hz)50-60
Power Factor0.74 - 0.75
Power Charged (W)0.2 - 0.3
Power Charging (W)5 - 5.7
Viewing Distance (m)25
Luminaire Options
Emergency3hr | 3hr Dali
LegendsUp | Down | Left | Right

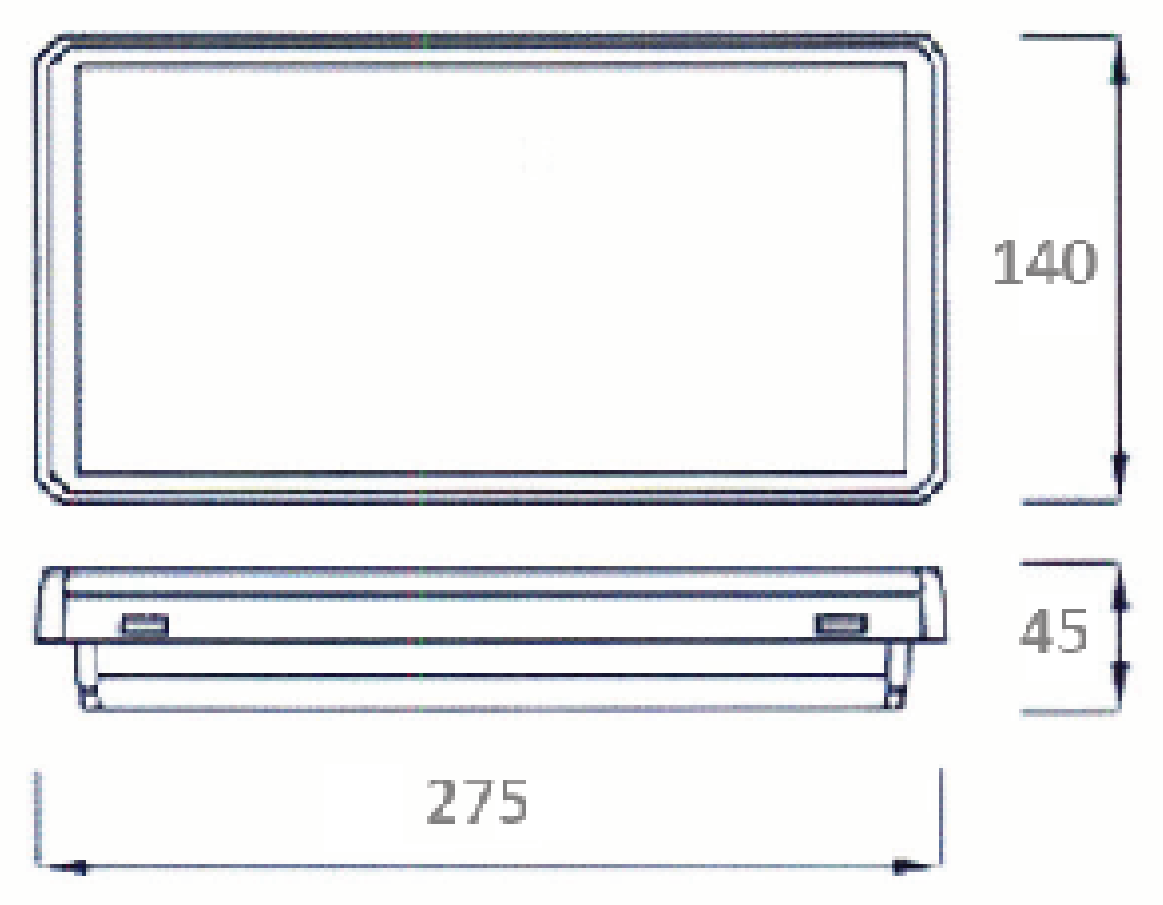

Dimensions
| Length (mm) | 275 |
| Width (mm) | 140 |
| Height (mm) | 45 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Colour | Emergency | Schedule |
|---|---|---|---|
| White | 3hr | ||
| White | 3hr Dali | ||
| White | 3hr | ||
| White | 3hr Dali | ||
| White | 3hr | ||
| White | 3hr Dali | ||
| White | 3hr | ||
| White | 3hr Dali |
Showing 1–8 of 8 filtered variants (8 total)
Show
Suitable Applications
Emergency
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
