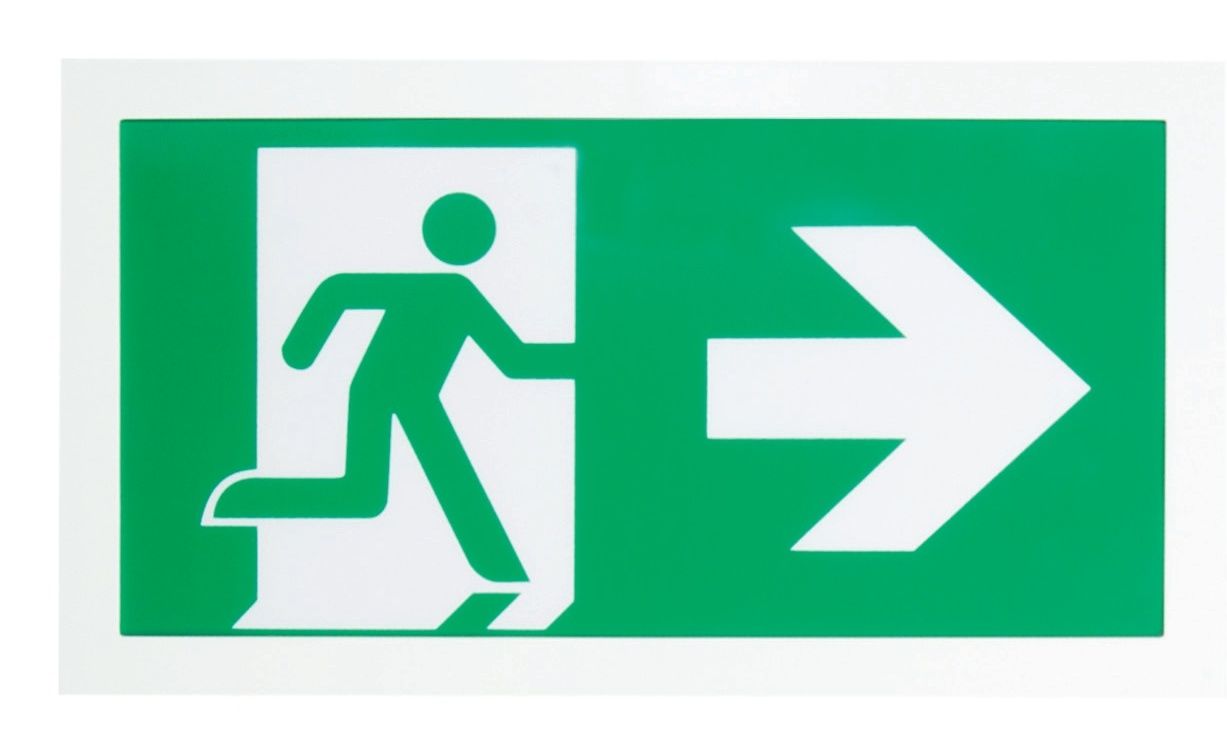

Escape Exit Wall Mount
The Escape Exit Wall Mount is a surface or semi-recessed wall-mounted LED exit sign with an integral downlight panel, offering a 30m viewing distance and a supplied kit of ISO 7010 legends, with switchable maintained or DALI-2 self-test operation.
Features
Emergency
CE Marked
UKCA Marked
Downloads
Specification
Battery3.2V 3.8AH LIFEPO4
Charge Time (Hrs)24
Ingress ProtectionIP40
Mains Voltage (V)230-240
Mains Frequency (Hz)50-60
Power Factor0.74 - 0.75
Power Charged (W)0.2 - 0.28
Power Charging (W)5 - 5.7
Viewing Distance (m)30
Luminaire Options
Emergency3hr | 3hr Dali
LegendsUp | Down | Left | Right

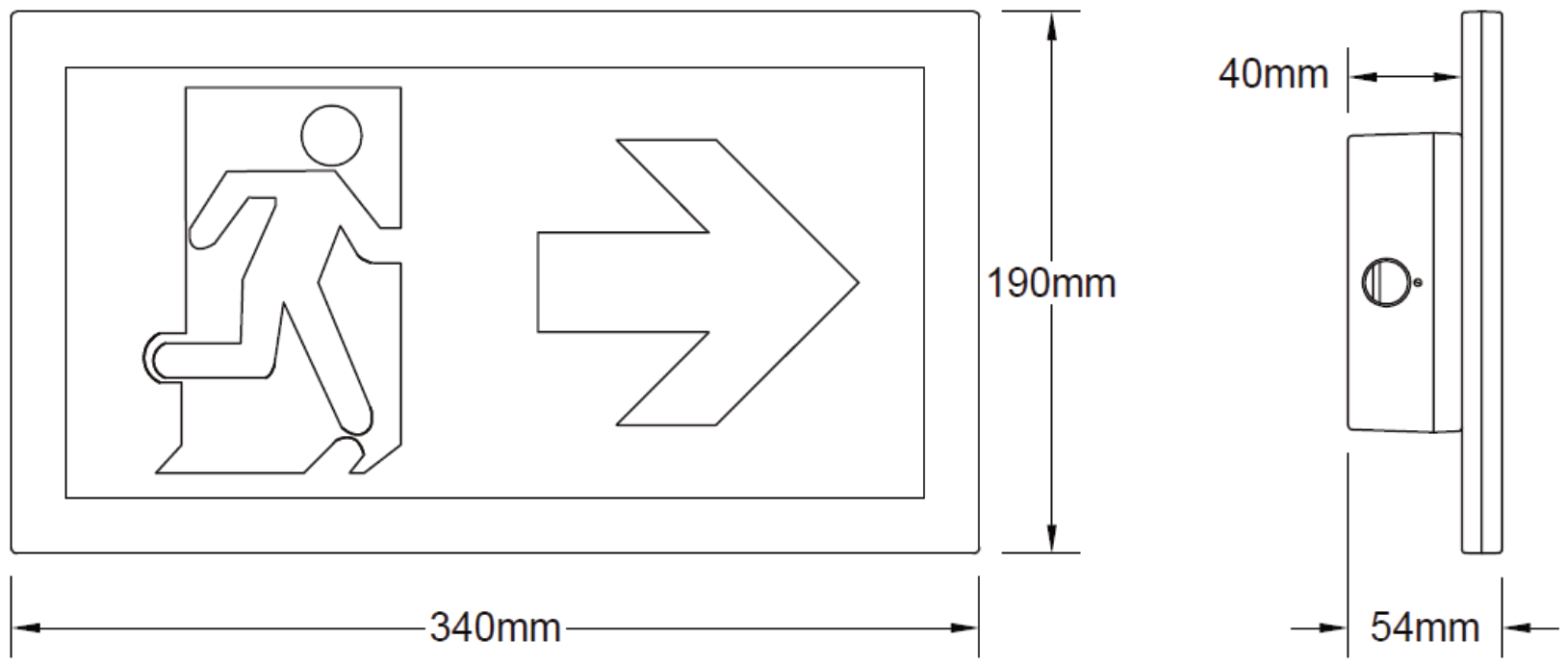

Dimensions
| Length (mm) | 340 |
| Width (mm) | 54 |
| Height (mm) | 190 |
| Nominal Weight (Kg) | 1.2 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Colour | Emergency | Schedule |
|---|---|---|---|
| White | 3hr | ||
| White | 3hr Dali |
Showing 1–2 of 2 filtered variants (2 total)
Show
Suitable Applications
Emergency
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
