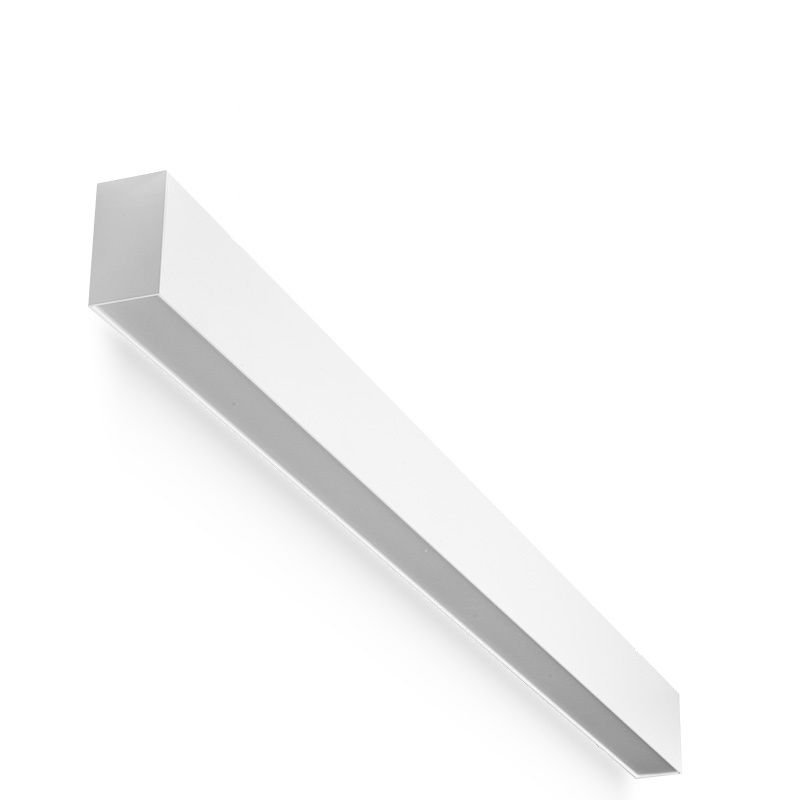

Athena 50 Wall Mount
A wall-mounted version of the athena 50 linear in lengths from 900mm to 1.8m, offering direct or direct/indirect distribution up to 9,410 lm through opal, microprism (UGR<19) or asymmetric optics, in white or black with DALI dimming and 3-Hour emergency options for the modern workplace.
Available Finishes
White
Black
Silver
Any RAL
Features
5 Year Warranty
Any RAL Colour
Emergency
Smart Controls
Tunable White
Made in Britain
CE Marked
UKCA Marked
Downloads
Specification
Colour Rendering (Ra)80
Colour Temperature (K)3000 - 4000
Electrical ClassI
Ingress Protection20
Life (>hours)75,000
Life RatingL70 / B10
Luminaire Efficacy (Llm/tcw)Varies by variant
Luminaire Output (Llm)Varies by variant
Luminaire Power (Tcw)Varies by variant
Macadam (SDCM)3
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Warranty (years)5
Luminaire Options
ColourWhite | Black | Silver | Any RAL
Colour Temperature3000 | 4000 | Tuneable white
DiffuserOpal diffuser | Microprism | Asymmetric
DriverFixed output | Dali | Dsi | Switch dim | 1-10V | Wireless
Emergency3hr | 3hr Dali | 3hr Wireless
DistributionDirect | Direct/Indirect

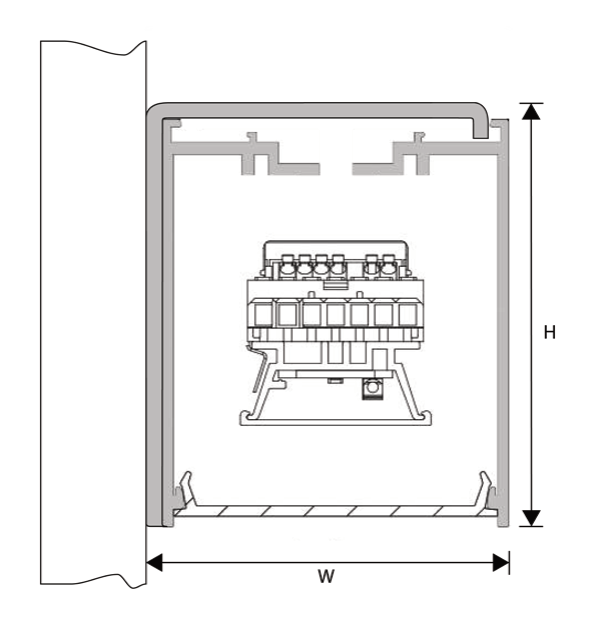

Dimensions
Select size (mm)
| Length (mm) | 870 |
| Width (mm) | 51 |
| Height (mm) | 87 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Length | Output | CCT | Colour | Diffuser | Driver | Wattage | Efficacy | Emergency | Schedule |
|---|---|---|---|---|---|---|---|---|---|---|
| 870 | 957 | 3000 | White 9016 | — | Fixed | 8.7 | 110 | — | ||
| 870 | 957 | 3000 | White 9016 | — | Fixed | 8.7 | 110 | 3hr | ||
| 870 | 957 | 3000 | White 9016 | — | Dali | 8.7 | 110 | — | ||
| 870 | 957 | 3000 | White 9016 | — | Dali | 8.7 | 110 | 3hr Dali | ||
| 870 | 957 | 3000 | White 9016 | Opal | Fixed | 8.7 | 110 | — | ||
| 870 | 957 | 3000 | White 9016 | Opal | Fixed | 8.7 | 110 | 3hr | ||
| 870 | 957 | 3000 | White 9016 | Opal | Dali | 8.7 | 110 | — | ||
| 870 | 957 | 3000 | White 9016 | Opal | Dali | 8.7 | 110 | 3hr Dali | ||
| 870 | 957 | 3000 | White 9016 | Prismatic | Fixed | 8.7 | 110 | — | ||
| 870 | 957 | 3000 | White 9016 | Prismatic | Fixed | 8.7 | 110 | 3hr | ||
| 870 | 957 | 3000 | White 9016 | Prismatic | Dali | 8.7 | 110 | — | ||
| 870 | 957 | 3000 | White 9016 | Prismatic | Dali | 8.7 | 110 | 3hr Dali |
Showing 1–12 of 1152 filtered variants (1152 total)
Show
Page 1 of 96Suitable Applications
EducationHealthcareHospitalityOfficeRetail
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
