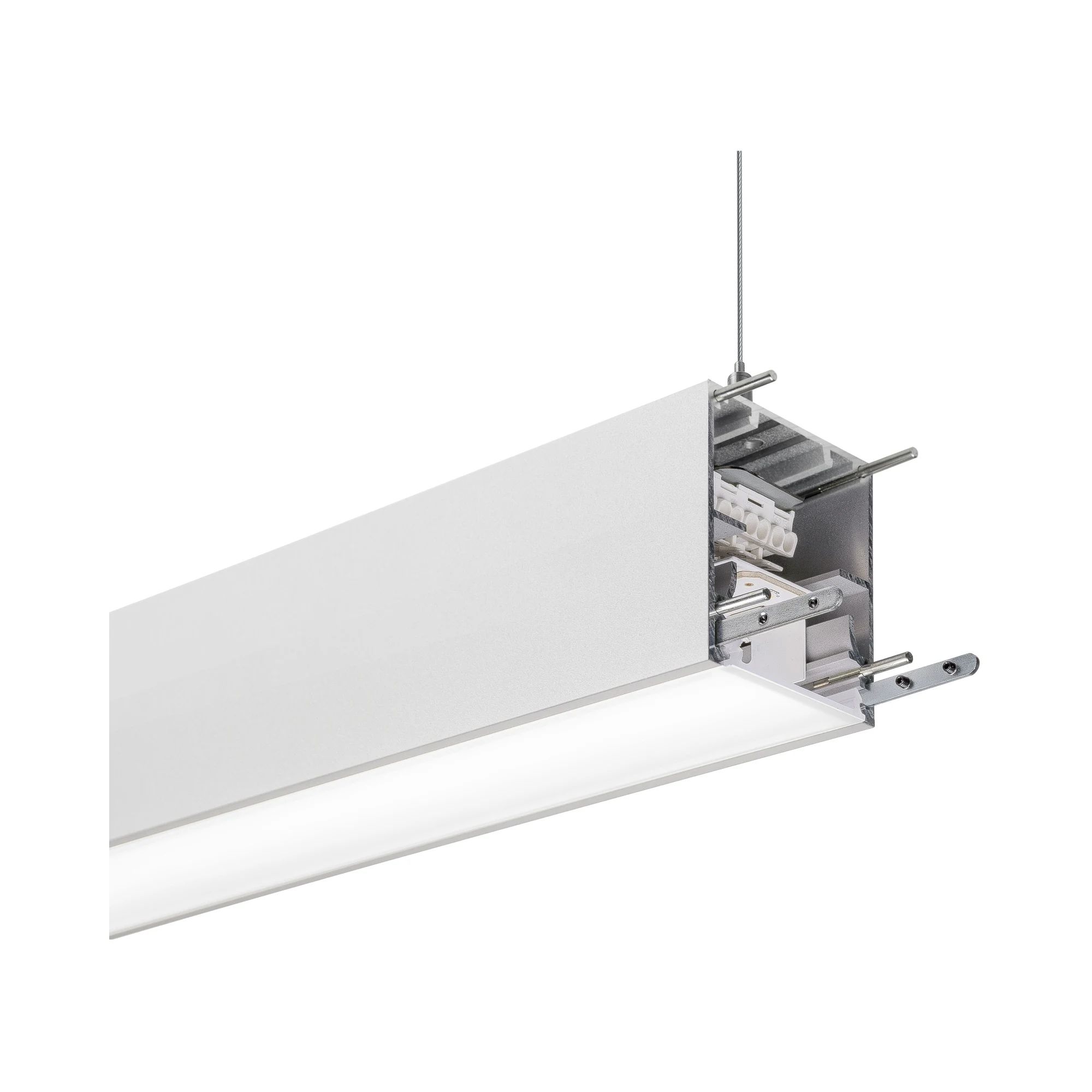

Metis Suspended Continuous
Family variant: Continuous · Suspended
A continuous direct/indirect linear systems that combines seamless run capability with a 75:25 light split — simultaneously illuminating workspaces and washing ceilings to create balanced, visually comfortable environments.
Available Finishes
White 9016
Grey 9006
Black 9005
Any RAL
Features
5 Year Warranty
IP20
Any RAL Colour
Emergency
Sensor
Smart Controls
Tunable White
Made in Britain
CE Marked
UKCA Marked
Downloads
Specification
Colour Rendering (Ra)80
Colour Temperature (K)3000 - 4000
Electrical ClassI
Ingress Protection - FrontIP20
Ingress Protection - RearIP20
Life (>hours)72,000
Life RatingL80 / F10
Luminaire Efficacy (Llm/tcw)Varies by variant
Luminaire Output (Llm)Varies by variant
Luminaire Output (Llm) DirectVaries by variant
Luminaire Output (Llm) IndirectVaries by variant
Luminaire Power (Tcw)Varies by variant
Macadam (SDCM)3
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Power FactorVaries by variant
Minimum Operating Temperature (°C)-25
Maximum Operating Temperature (°C)+35
UGRVaries by variant
Warranty (years)5
Luminaire Options
ColourWhite 9016 | Grey 9006 | Black 9005 | Any RAL
Colour Temperature3000 | 4000 | Tuneable white
DiffuserOpal | Prismatic
SensorPIR | Microwave | Daylight harvesting
DriverFixed output | Dali | Switch dim | Dsi | Wireless
Emergency3hr | 3hr Dali | 3hr Wireless
AccessoriesDiffuser removal tool | Suspension kit | 90° Joint | In-line joint kit
OptionsPre-lead & plug | Rod suspension | Integral spotlights
DistributionDirect | Direct / indirect
Dimensions
Select size (mm)
| Length (mm) | 847 |
| Width (mm) | 72 |
| Height (mm) | 62 |
| Nominal Weight (Kg) | 3.5 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Length | Output | CCT | Colour | Diffuser | Driver | Wattage | Efficacy | Emergency | Photometry | Schedule |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 847 | 1488 | 3000 | White 9016 | Prismatic | Fixed | 13.7 | 109 | — | LDTIES | ||
| 847 | 1488 | 3000 | White 9016 | Prismatic | Dali | 13.7 | 109 | — | LDTIES | ||
| 847 | 1553 | 3000 | White 9016 | Opal | Fixed | 16.2 | 96 | — | LDTIES | ||
| 847 | 1553 | 3000 | White 9016 | Opal | Dali | 16.2 | 96 | — | LDTIES | ||
| 847 | 1556 | 4000 | White 9016 | Prismatic | Fixed | 13.6 | 114 | — | LDTIES | ||
| 847 | 1556 | 4000 | White 9016 | Prismatic | Dali | 13.6 | 114 | — | LDTIES | ||
| 847 | 1629 | 4000 | White 9016 | Opal | Fixed | 16.1 | 101 | — | LDTIES | ||
| 847 | 1629 | 4000 | White 9016 | Opal | Dali | 16.1 | 101 | — | LDTIES | ||
| 847 | 2065 | 3000 | White 9016 | Prismatic | Fixed | 17.6 | 117 | — | LDTIES | ||
| 847 | 2065 | 3000 | White 9016 | Prismatic | Dali | 17.6 | 117 | — | LDTIES | ||
| 847 | 2161 | 4000 | White 9016 | Prismatic | Fixed | 17.6 | 123 | — | LDTIES | ||
| 847 | 2161 | 4000 | White 9016 | Prismatic | Dali | 17.6 | 123 | — | LDTIES | ||
Showing 1–12 of 240 filtered variants (240 total)
Show
Page 1 of 20Suitable Applications
EducationHospitalityOfficeRetail
