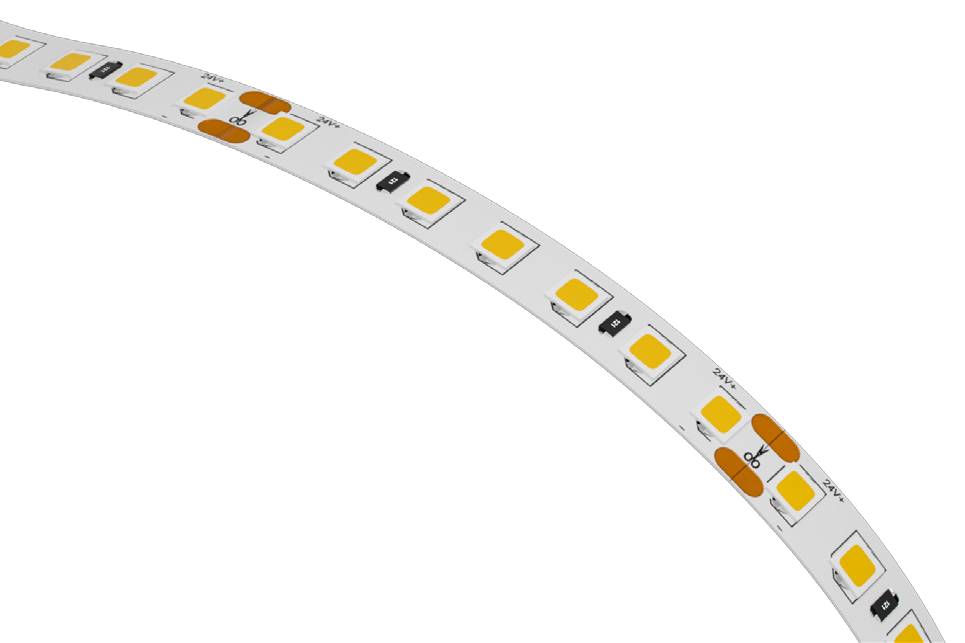

Quazar 24v 160 IP20
Family variant: 160 LED · IP20
The quazar 160 is a high-efficacy 24V flexible LED tape delivering up to 162lm/W (1,330lm/m) at 8.2W/m from 160 leds/m with 50mm cut points, on 8mm 5m reels with industrial-grade adhesive backing, compatible with all dimming types, in 2700K–6000K with IP20 and IP65 options and a 3-year warranty.
Features
IP20
IP65
CE Marked
Tunable White
RGB+W
Downloads
Specification
Colour Rendering (Ra)>80 | >95
Colour Temperature (K)2700 - 6000
Dimming CompatibilityNon-dimmable, 0-10V, mains (triac)
Ingress ProtectionIP20
Input Voltage (V DC)24
Installation NotesPower from one end up to 5m; feed from middle up to 10m
Leds per Metre160
Light Source TypeLED - smd flexible tape
Lumen Output per Metre (Lm/m)1080 - 1330
Max Run Length (m)5 (one end) / 10 (centre feed)
Minimum Operating Temperature (°C)-20
Maximum Operating Temperature (°C)45
Power per Metre (W/m)8.2
Suggested DriversNon-dimmable: dri CV24 20 IP20 (1m), dri CV24 36 IP20 (3m), dri CV24 50 IP20 (5m), dri CV24 100 IP20 (10m); mains dimming: dri CV24 25TD IP20 (1m), dri CV24 25TD IP20 (3m), dri CV24 50TD IP20 (5m), dri CV24 100TD IP20 (10m) – 10m centre feed
Warranty (years)3

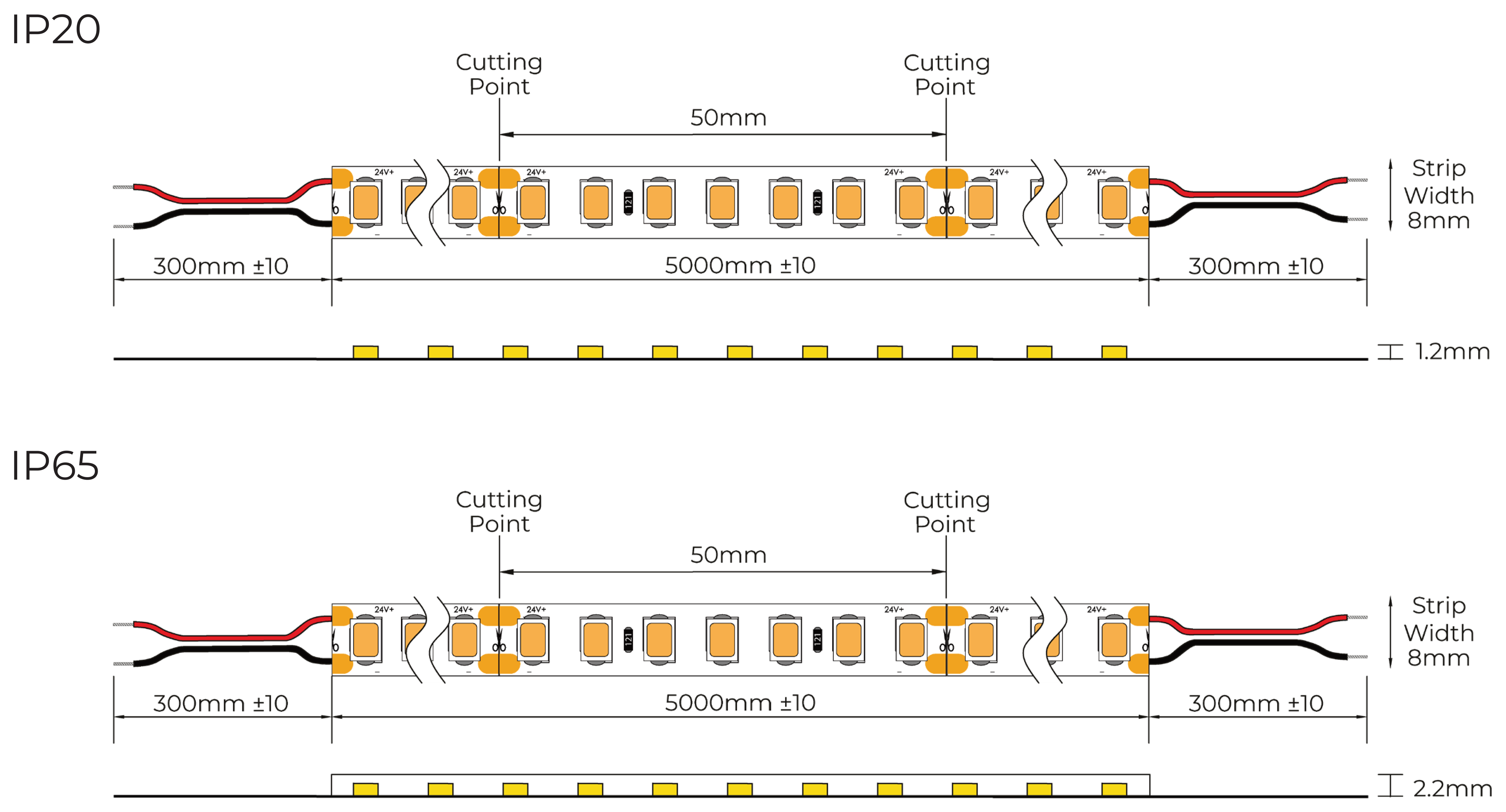

Dimensions
| Length (mm) | 5000 |
| Width (mm) | 8 |
| Height (mm) | 1.2 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Lumen Output per Metre (lm/m) | CCT | Colour Rendering (Ra) | Power per Metre (W/m) | Schedule |
|---|---|---|---|---|---|
| 1200 | 2700 | >80 | 8.2 | ||
| 1300 | 3000 | >80 | 8.2 | ||
| 1330 | 4000 | >80 | 8.2 | ||
| 1330 | 6000 | >80 | 8.2 | ||
| 1080 | 2700 | >95 | 8.2 | ||
| 1170 | 3000 | >95 | 8.2 | ||
| 1197 | 4000 | >95 | 8.2 | ||
| 1197 | 6000 | >95 | 8.2 |
Showing 1–8 of 8 filtered variants (8 total)
Show
Suitable Applications
EducationHospitalityOfficeRetail
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
