Quazar 24v 60 IP20
Family variant: 60 LED · IP20

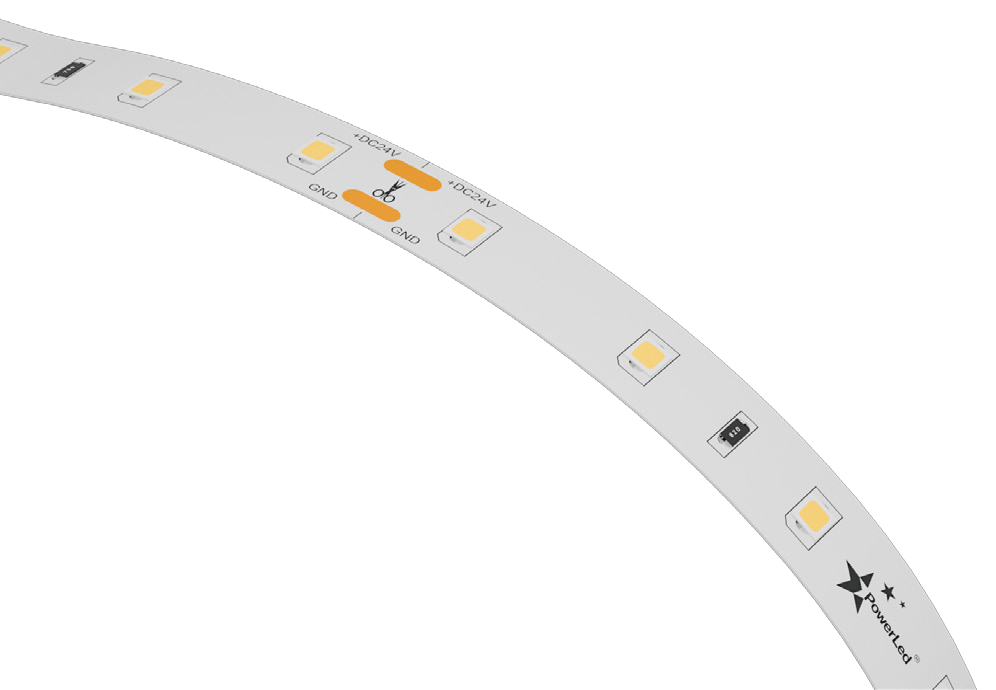

The quazar 60 is a value 24V flexible LED tape built on a dual copper layer pcb with controlled-binning LEDs for consistent tone, delivering 800lm/m at 9.6W/m from 60 leds/m with a 120° beam and 100mm cut points, on 10mm 5m reels in 3000K, 4000K and 6000K with IP20 and IP65 options and a 3-year warranty.
Features
IP20
IP65
CE Marked
Tunable White
RGB+W
Downloads
Specification
Beam Angle (°)120°
Colour Temperature (K)3000 - 6000
Dimming CompatibilityNon-dimmable, 0-10V, mains (triac); control: SCD107W remote, BLE-15A-REV-A bluetooth
Ingress ProtectionIP20
Input Voltage (V DC)24
Installation NotesPower from one end up to 5m; feed from middle up to 10m
Leds per Metre60
Light Source TypeLED - smd flexible tape
Lumen Output per Metre (Lm/m)800
Max Run Length (m)5 (one end) / 10 (centre feed)
Minimum Operating Temperature (°C)-20
Maximum Operating Temperature (°C)45
Power per Metre (W/m)9.6
Suggested DriversIP20: Dri CV24 36 IP20 (3m), dri CV24 50 IP20 (5m), dri CV24 100 IP20 (10m); IP65: dri CV24 36 IP67 (3m), dri CV24 75 IP67 (5m), dri CV24 100 IP67 (10m) – 10m centre feed
Warranty (years)3

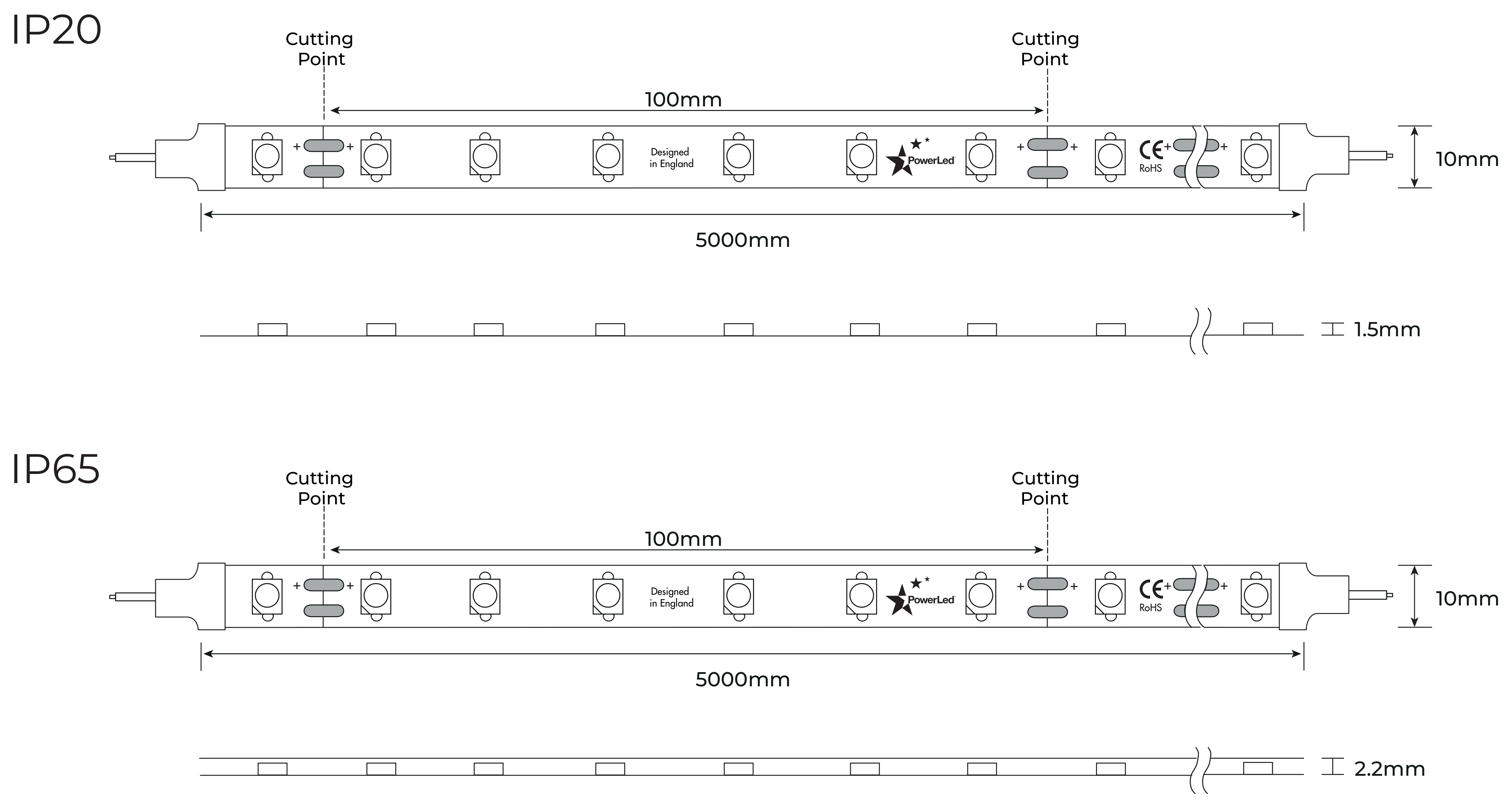

Dimensions
| Length (mm) | 5000 |
| Width (mm) | 10 |
| Height (mm) | 1.5 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Length | Output | CCT | Optic | Schedule |
|---|---|---|---|---|---|
| 5000 | LED | 3000 | 60° | ||
| 5000 | LED | 4000 | 60° | ||
| 5000 | LED | 6000 | 60° |
Showing 1–3 of 3 filtered variants (3 total)
Show
Suitable Applications
EducationHospitalityOfficeRetail
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
