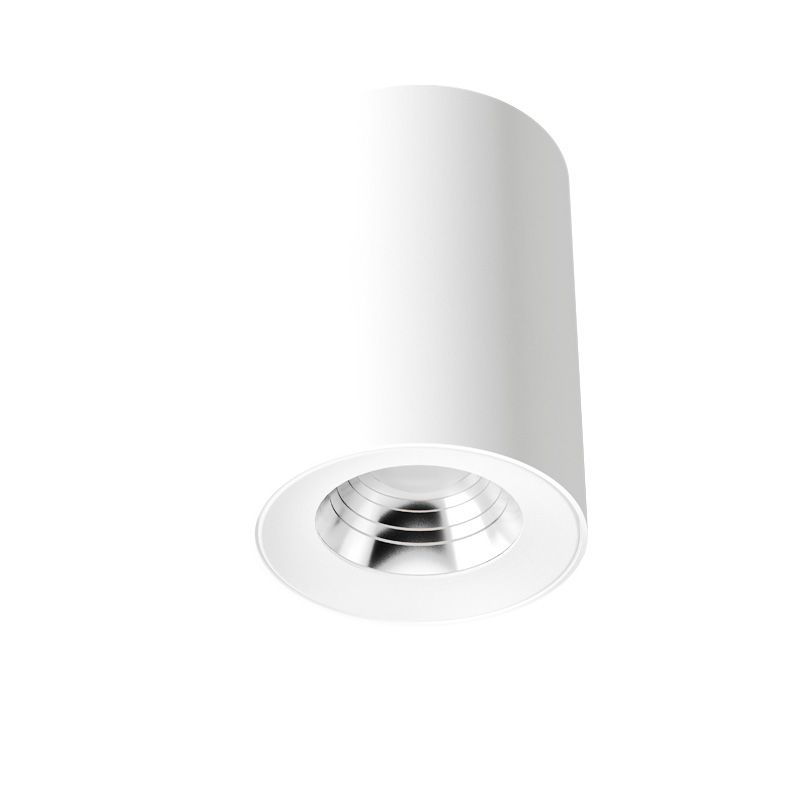

Tube 125 Surface
An architectural slimline 125mm cylindrical LED surface downlight with an extruded aluminium housing, cast heat sink and aluminium reflector, delivering 1,880–2,350 lm at up to 131 lm/w with 20°, 30° or 50° beams, in white or black with a DALI dimming option.
Available Finishes
White
Black
Any RAL
Features
5 Year Warranty
Any RAL Colour
Smart Controls
Made in Britain
CE Marked
UKCA Marked
Downloads
Specification
Colour Rendering (Ra)80
Colour Temperature (K)3000 - 4000
Electrical ClassI
Ingress Protection20
Life (>hours)50,000
Life RatingL70 / B10
Luminaire Efficacy (Llm/tcw)Up to 131.4
Luminaire Output (Llm)1881 - 2351
Luminaire Power (Tcw)14.4 - 17.9
Macadam (SDCM)3
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Warranty (years)5
Luminaire Options
ColourWhite | Black | Any RAL
Colour Temperature3000 | 4000
Optics20° | 30° | 50°
DriverFixed output | Dali | Dsi | Switch dim | Wireless

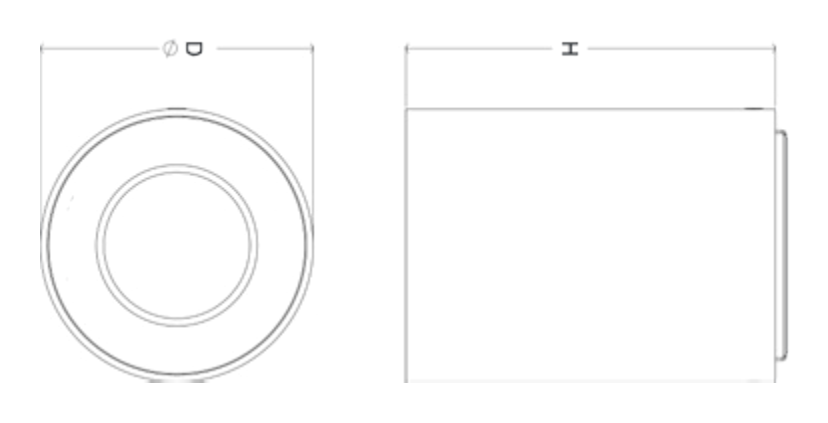

Dimensions
| Height (mm) | 172 |
| Diameter (mm) | 125 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Optic | Driver | Wattage | Efficacy | Schedule |
|---|---|---|---|---|---|---|---|---|
| 1881 | 3000 | White 9016 | 20° | Fixed | 14.4 | 130.6 | ||
| 1881 | 3000 | White 9016 | 20° | Dali | 14.4 | 130.6 | ||
| 1881 | 3000 | White 9016 | 30° | Fixed | 14.4 | 130.6 | ||
| 1881 | 3000 | White 9016 | 30° | Dali | 14.4 | 130.6 | ||
| 1881 | 3000 | White 9016 | 50° | Fixed | 14.4 | 130.6 | ||
| 1881 | 3000 | White 9016 | 50° | Dali | 14.4 | 130.6 | ||
| 1881 | 4000 | White 9016 | 20° | Fixed | 14.4 | 130.6 | ||
| 1881 | 4000 | White 9016 | 20° | Dali | 14.4 | 130.6 | ||
| 1881 | 4000 | White 9016 | 30° | Fixed | 14.4 | 130.6 | ||
| 1881 | 4000 | White 9016 | 30° | Dali | 14.4 | 130.6 | ||
| 1881 | 4000 | White 9016 | 50° | Fixed | 14.4 | 130.6 | ||
| 1881 | 4000 | White 9016 | 50° | Dali | 14.4 | 130.6 |
Showing 1–12 of 36 filtered variants (36 total)
Show
Page 1 of 3Suitable Applications
EducationHospitalityOfficeRetail
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
