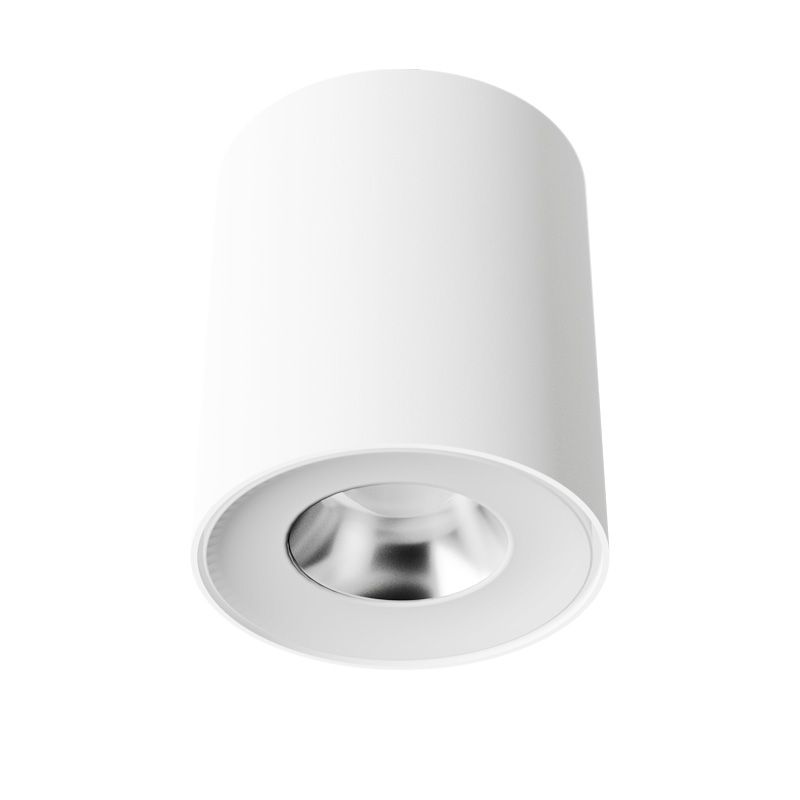

Tube 200 Surface
A large-format 200mm cylindrical LED surface downlight with an extruded aluminium housing, cast heat sink and aluminium reflector, delivering 2,430–3,240 lm at up to 149 lm/w with 10°, 30° or 45° beams, in white or black with dual-channel DALI and 3-Hour emergency options.
Available Finishes
White
Black
Any RAL
Features
5 Year Warranty
Any RAL Colour
Emergency
Smart Controls
Made in Britain
CE Marked
UKCA Marked
Downloads
Specification
Colour Rendering (Ra)80
Colour Temperature (K)3000 - 4000
Electrical ClassI
Ingress Protection20
Life (>hours)50,000
Life RatingL70 / B10
Luminaire Efficacy (Llm/tcw)Up to 148.8
Luminaire Output (Llm)2433 - 3244
Luminaire Power (Tcw)16.4 - 21.8
Macadam (SDCM)3
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Warranty (years)5
Luminaire Options
ColourWhite | Black | Any RAL
Colour Temperature3000 | 4000
Optics10° | 30° | 45°
DriverFixed output | Dali | Dsi | Switch dim | Wireless
Emergency3hr | 3hr Dali

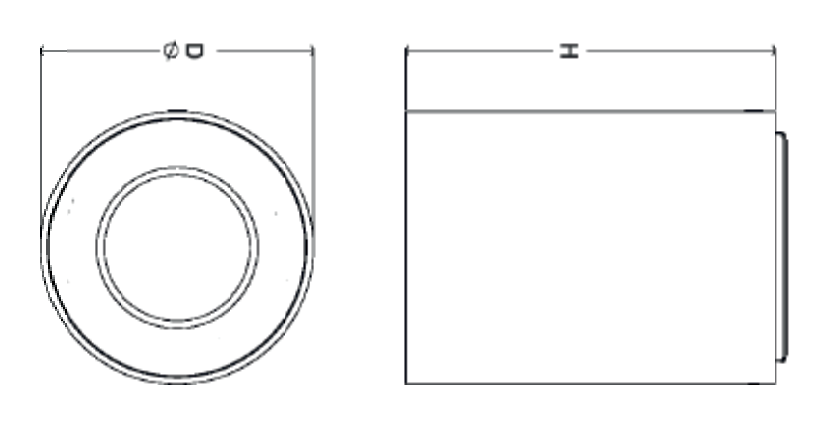

Dimensions
| Height (mm) | 220 |
| Diameter (mm) | 200 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Optic | Driver | Wattage | Efficacy | Emergency | Schedule |
|---|---|---|---|---|---|---|---|---|---|
| 2433 | 3000 | Black | 10° | Fixed | 16.4 | 148.4 | — | ||
| 2433 | 3000 | Black | 10° | Fixed | 16.4 | 148.4 | 3hr | ||
| 2433 | 3000 | Black | 10° | Dual channel dali | 16.4 | 148.4 | — | ||
| 2433 | 3000 | Black | 10° | Dual channel dali | 16.4 | 148.4 | 3hr Dali | ||
| 2433 | 3000 | Black | 30° | Fixed | 16.4 | 148.4 | — | ||
| 2433 | 3000 | Black | 30° | Fixed | 16.4 | 148.4 | 3hr | ||
| 2433 | 3000 | Black | 30° | Dual channel dali | 16.4 | 148.4 | — | ||
| 2433 | 3000 | Black | 30° | Dual channel dali | 16.4 | 148.4 | 3hr Dali | ||
| 2433 | 3000 | Black | 45° | Fixed | 16.4 | 148.4 | — | ||
| 2433 | 3000 | Black | 45° | Fixed | 16.4 | 148.4 | 3hr | ||
| 2433 | 3000 | Black | 45° | Dual channel dali | 16.4 | 148.4 | — | ||
| 2433 | 3000 | Black | 45° | Dual channel dali | 16.4 | 148.4 | 3hr Dali |
Showing 1–12 of 192 filtered variants (192 total)
Show
Page 1 of 16Suitable Applications
EducationHospitalityOfficeRetail
