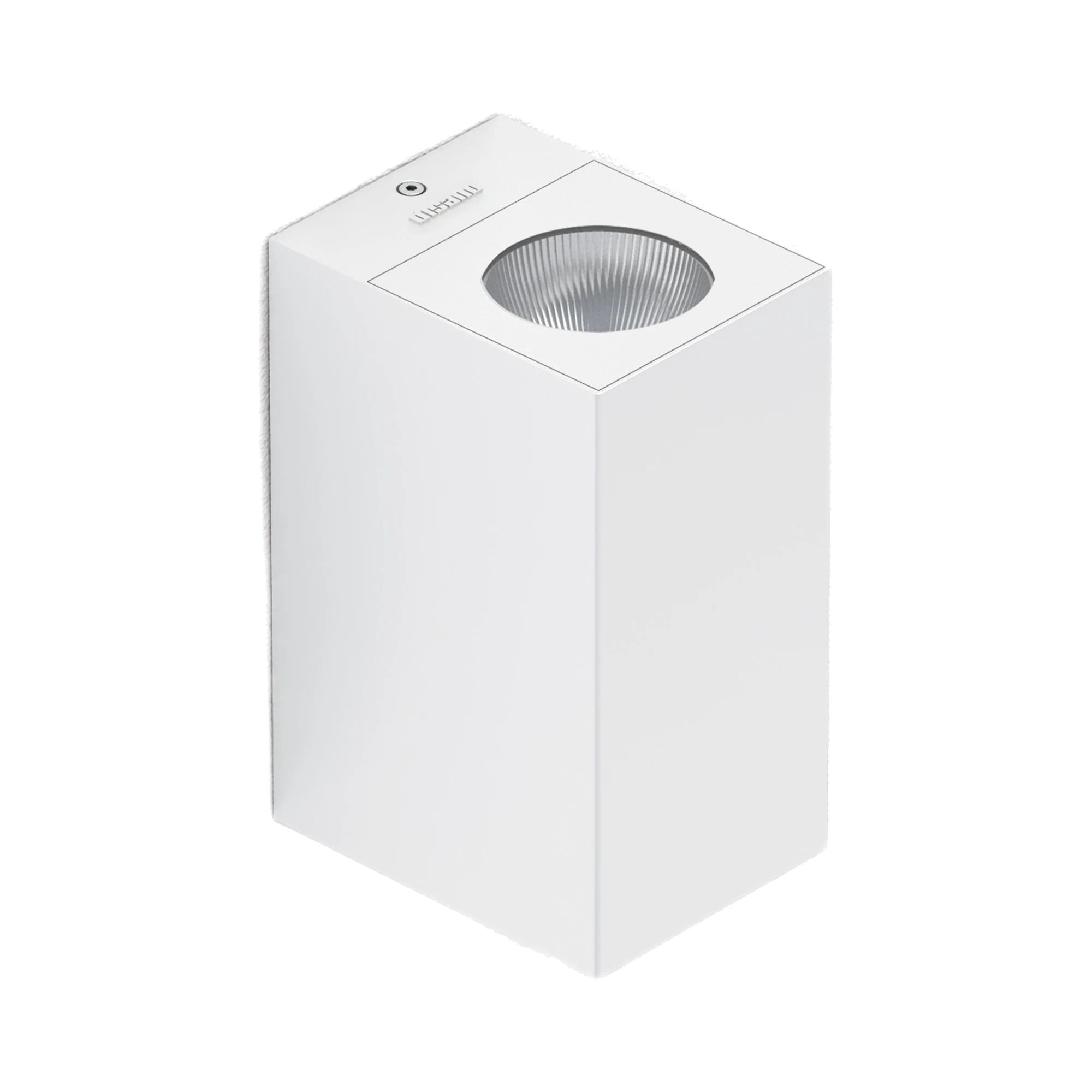

Square 1574
A compact cube-form die-cast aluminium wall light with extra-clear tempered glass and metallised optics, delivering up to 3,310 lm of direct and indirect light at up to 132 lm/w, rated IP66 and IK08 in 2200K amber, 3000K or 4000K and finished in white or graphite.
Features
IK08
CE Marked
Downloads
Specification
CoatingPolyester powder coat, uv-stabilised
Colour Rendering (Ra)80 | Amber
Colour Temperature (K)2200 - 4000
Diffuser4mm Extra-clear toughened glass
Electrical ClassI
Ingress ProtectionIP66
Impact ProtectionIK08
Life (>hours)50,000
Life RatingL90 / B10
Light Source Energy ClassD
Light Source TypeLED Cob | LED Cob amber
Luminaire Efficacy (Llm/tcw)Up to 132
Luminaire Output (Llm)3143 - 3309
Luminaire Power (Tcw)25 - 26
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Power Factor0.92
Optics MaterialMetallised polycarbonate
Photobiological Safety ClassRG0
Reference StandardsEN 60598-1 / EN 60529
Warranty (years)3
Luminaire Options
DriverDali | 1-10V

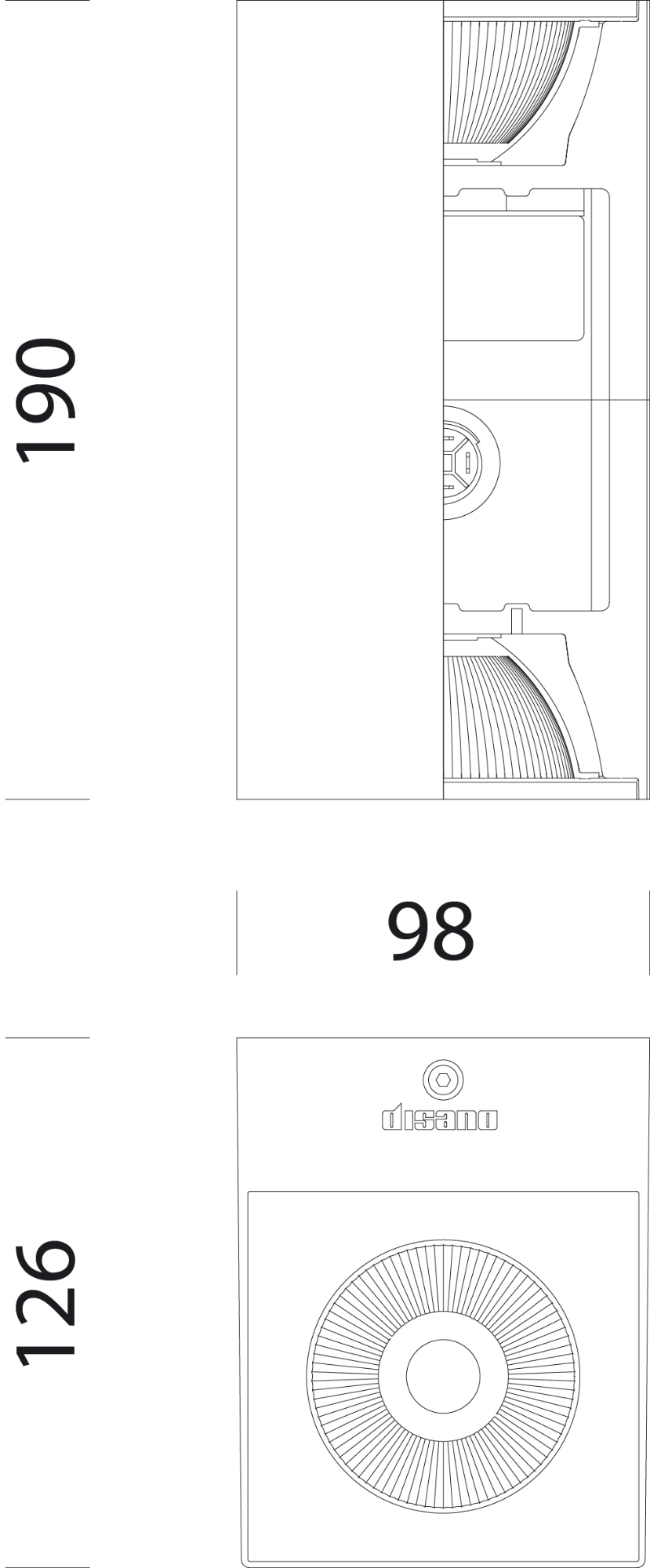

Dimensions
| Length (mm) | 126 |
| Width (mm) | 98 |
| Height (mm) | 190 |
| Nominal Weight (Kg) | 2.2 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Driver | Wattage | Efficacy | Schedule |
|---|---|---|---|---|---|---|---|
| 3309 | 4000 | White | Fixed | 25 | 132 | ||
| 3178 | 2200 | White | Fixed | 26 | 122 | ||
| 3309 | 4000 | Graphite | Fixed | 25 | 132 | ||
| 3178 | 2200 | Graphite | Fixed | 26 | 122 | ||
| 3143 | 3000 | White | Fixed | 25 | 126 | ||
| 3143 | 3000 | Graphite | Fixed | 25 | 126 |
Showing 1–6 of 6 filtered variants (6 total)
Show
Suitable Applications
EducationHospitalityOfficeRetail
