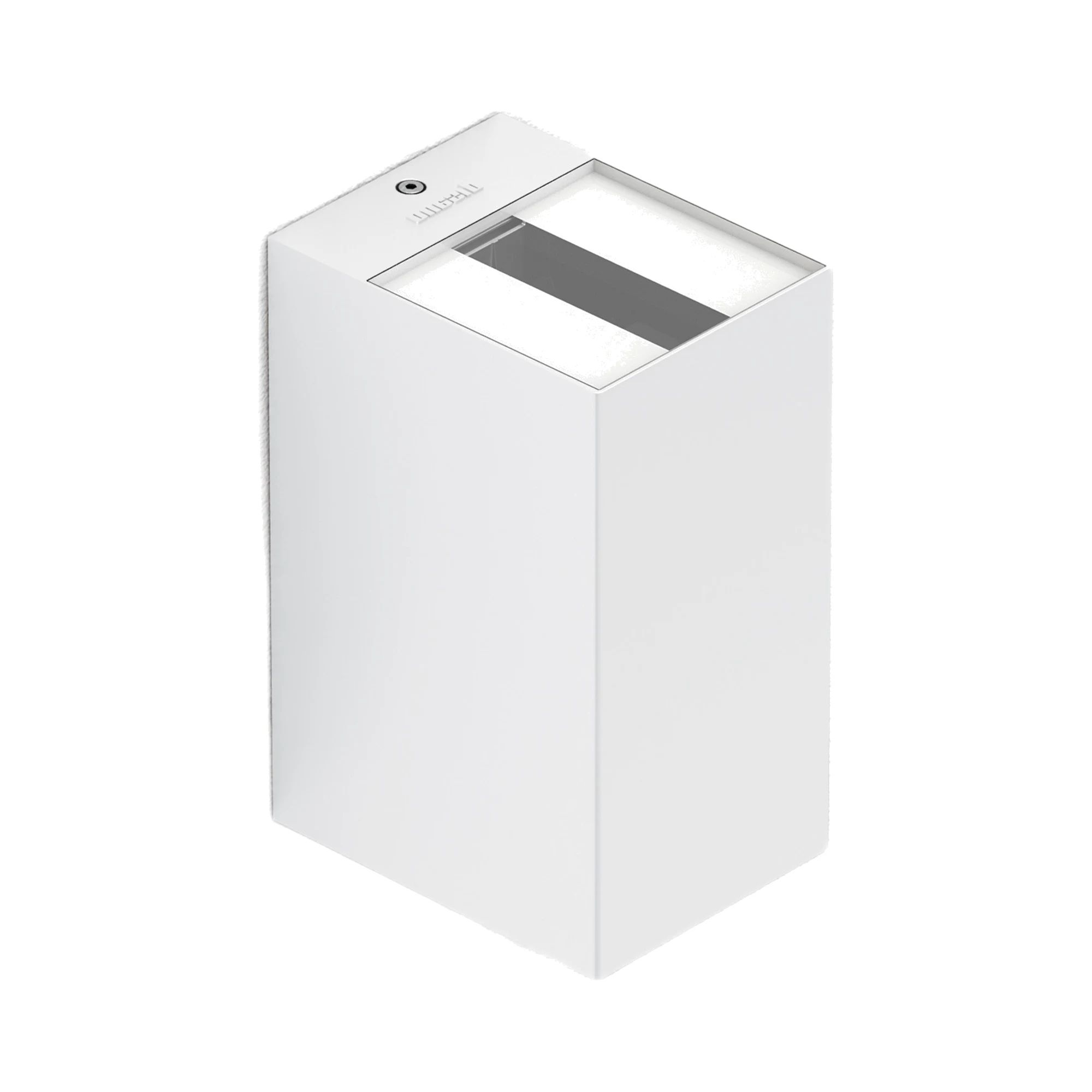

Square 1576
A compact cube-form die-cast aluminium wall light with extra-clear tempered glass, projecting focused direct and indirect beams of 1,700–3,110 lm for striking façade accents, rated IP66 and IK08 in 3000K or 4000K and finished in white or graphite.
Features
IK08
CE Marked
Downloads
Specification
CoatingPolyester powder coat, uv-stabilised
Colour Rendering (Ra)80
Colour Temperature (K)3000 - 4000
Diffuser4mm Extra-clear toughened glass
Electrical ClassI
Ingress ProtectionIP66
Impact ProtectionIK08
Life (>hours)50,000
Life RatingL90 / B10
Light Source Energy ClassD
Light Source TypeLED Cob
Luminaire Efficacy (Llm/tcw)Up to 128
Luminaire Output (Llm)1700 - 3108
Luminaire Power (Tcw)14 - 29
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Power Factor0.92
Optics MaterialMetallised polycarbonate
Photobiological Safety ClassRG0
Reference StandardsEN 60598-1 / EN 60529
Warranty (years)3
Luminaire Options
DriverDali | 1-10V

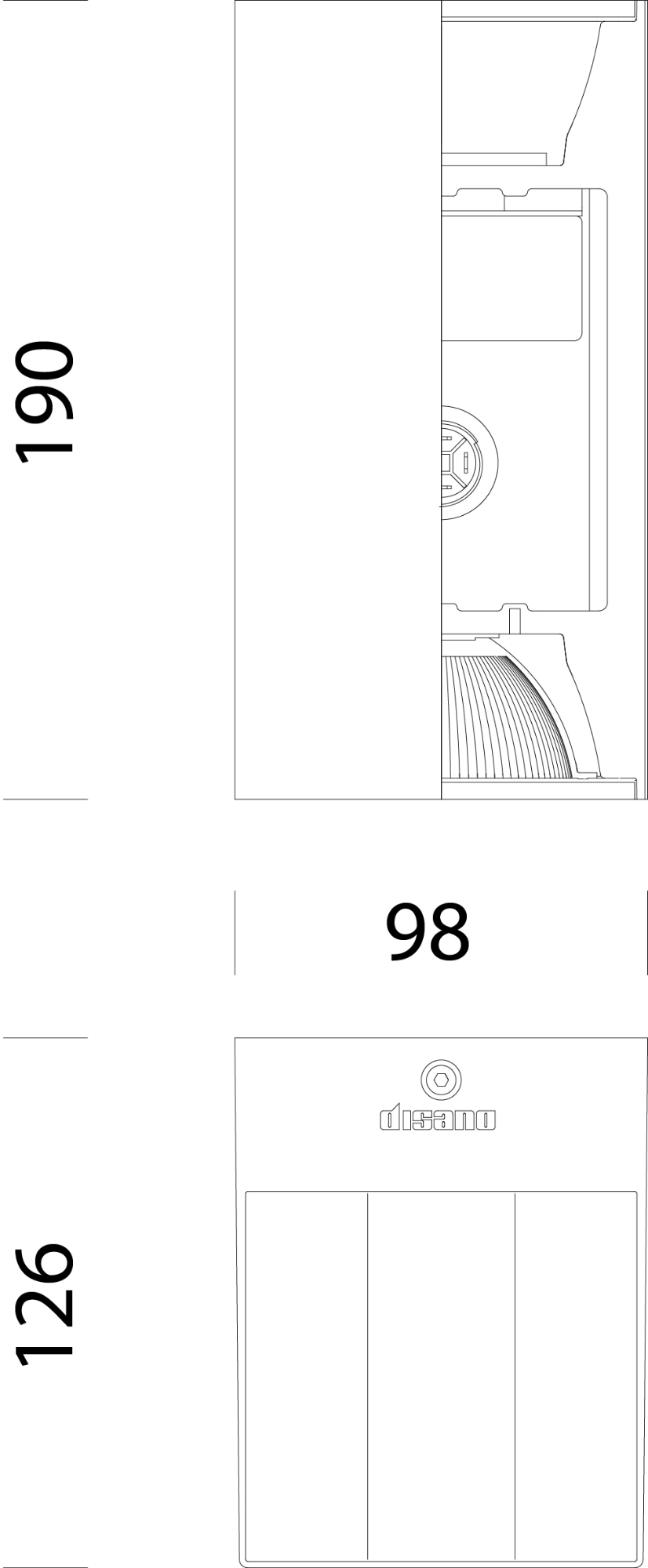

Dimensions
| Length (mm) | 126 |
| Width (mm) | 98 |
| Height (mm) | 190 |
| Nominal Weight (Kg) | 2.2 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Driver | Wattage | Efficacy | Schedule |
|---|---|---|---|---|---|---|---|
| 3081 | 4000 | White | Fixed | 29 | 106 | ||
| 3081 | 4000 | Graphite | Fixed | 29 | 106 | ||
| 3108 | 3000 | White | Fixed | 29 | 107 | ||
| 3108 | 3000 | Graphite | Fixed | 29 | 107 | ||
| 1791 | 4000 | White | Fixed | 14 | 128 | ||
| 1791 | 4000 | Graphite | Fixed | 14 | 128 | ||
| 1700 | 3000 | White | Fixed | 14 | 121 | ||
| 1700 | 3000 | Graphite | Fixed | 14 | 121 |
Showing 1–8 of 8 filtered variants (8 total)
Show
Suitable Applications
EducationHospitalityOfficeRetail
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
