Square 1577

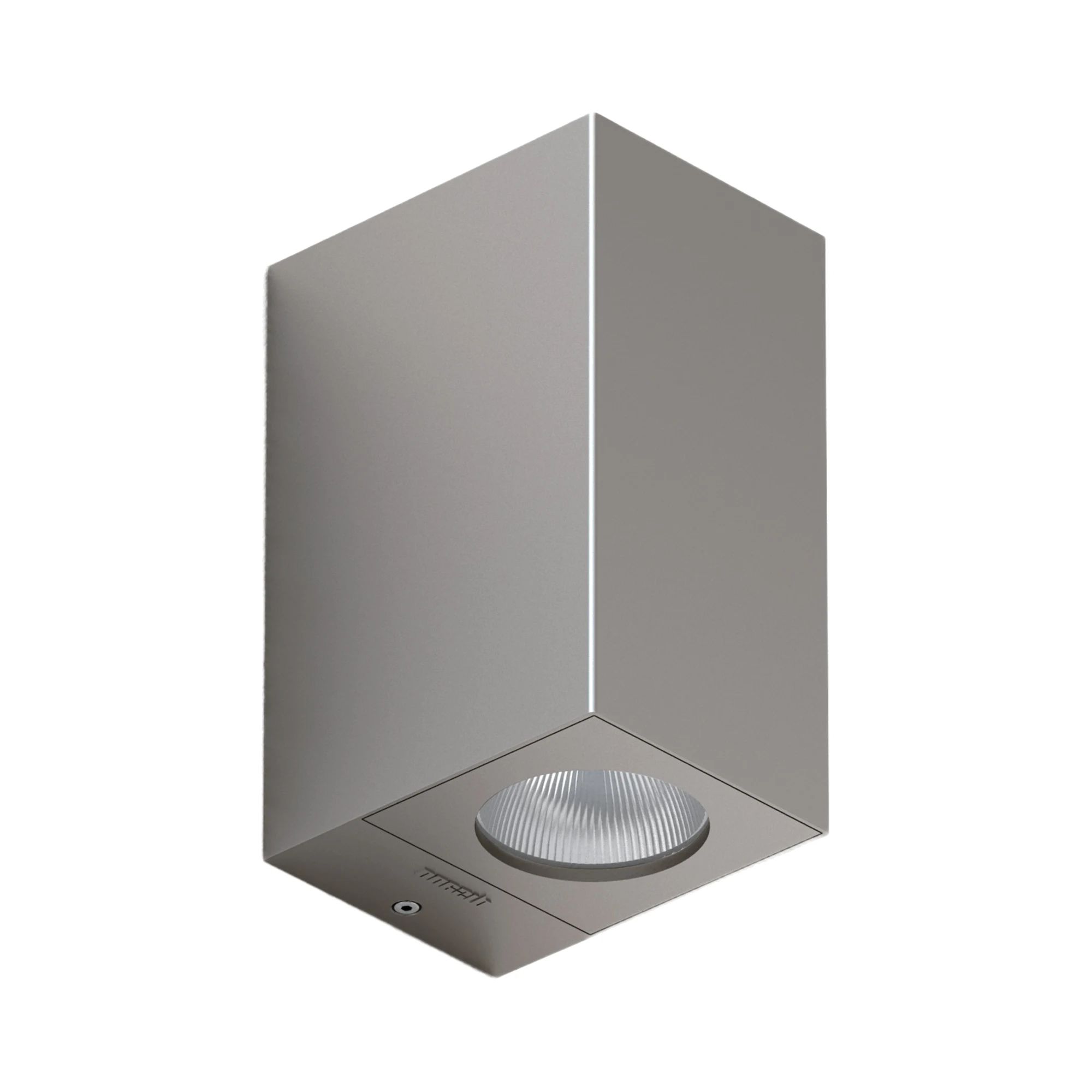

A compact cube-form die-cast aluminium wall light with extra-clear tempered glass, delivering 1,570–3,100 lm of direct downward light at up to 127 lm/w, rated IP66 and IK08 in 3000K or 4000K and finished in white or graphite.
Features
IK08
CE Marked
Downloads
Specification
CoatingPolyester powder coat, uv-stabilised
Colour Rendering (Ra)80
Colour Temperature (K)3000 - 4000
Diffuser4mm Extra-clear toughened glass
Electrical ClassI
Ingress ProtectionIP66
Impact ProtectionIK08
Life (>hours)50,000
Life RatingL90 / B10
Light Source Energy ClassD
Light Source TypeLED Cob
Luminaire Efficacy (Llm/tcw)Up to 127
Luminaire Output (Llm)1571 - 3100
Luminaire Power (Tcw)13 - 27
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Power Factor0.92
Optics MaterialMetallised polycarbonate
Photobiological Safety ClassRG0
Reference StandardsEN 60598-1 / EN 60529
Warranty (years)3
Luminaire Options
DriverDali | 1-10V

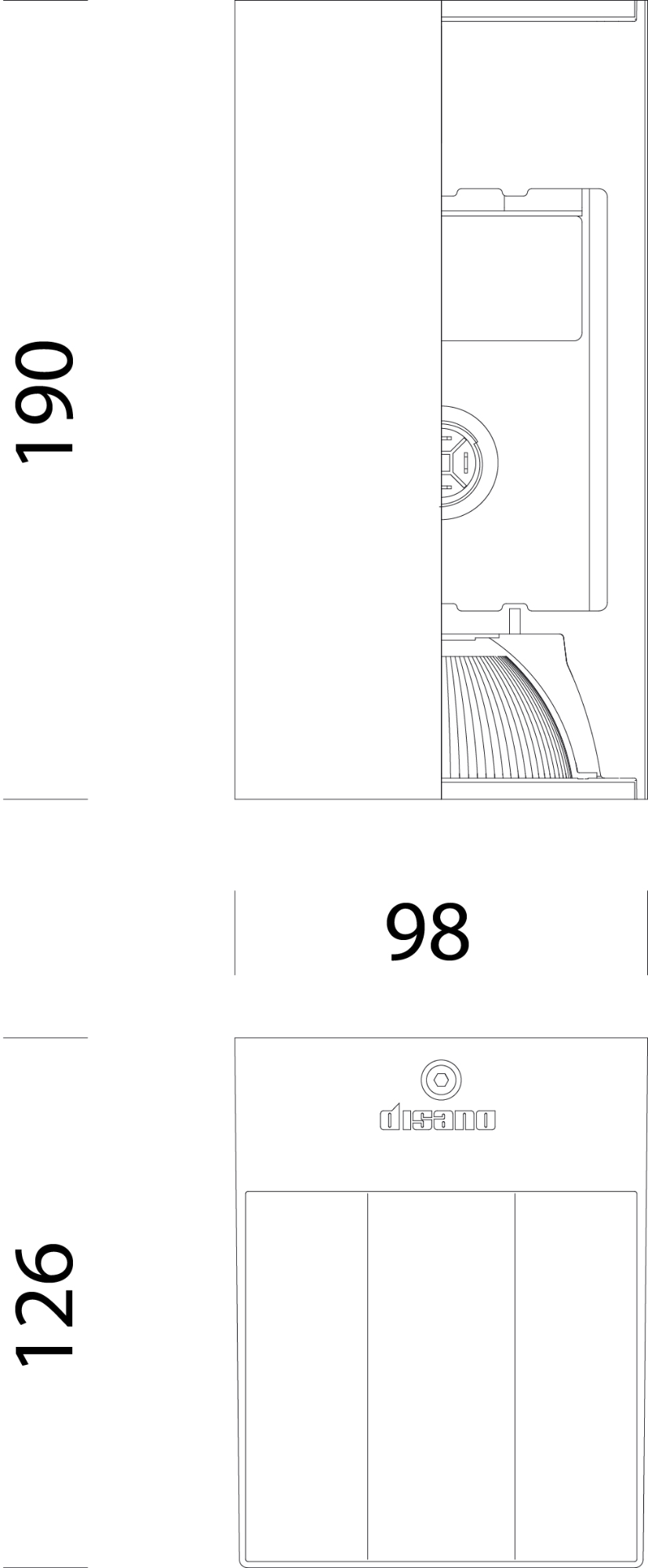

Dimensions
| Length (mm) | 126 |
| Width (mm) | 98 |
| Height (mm) | 190 |
| Nominal Weight (Kg) | 2.2 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Driver | Wattage | Efficacy | Schedule |
|---|---|---|---|---|---|---|---|
| 3100 | 4000 | White | Fixed | 27 | 115 | ||
| 3100 | 4000 | Graphite | Fixed | 27 | 115 | ||
| 2945 | 3000 | White | Fixed | 27 | 109 | ||
| 2945 | 3000 | Graphite | Fixed | 27 | 109 | ||
| 1654 | 4000 | White | Fixed | 13 | 127 | ||
| 1654 | 4000 | Graphite | Fixed | 13 | 127 | ||
| 1571 | 3000 | White | Fixed | 13 | 121 | ||
| 1571 | 3000 | Graphite | Fixed | 13 | 121 |
Showing 1–8 of 8 filtered variants (8 total)
Show
Suitable Applications
EducationHospitalityOfficeRetail
