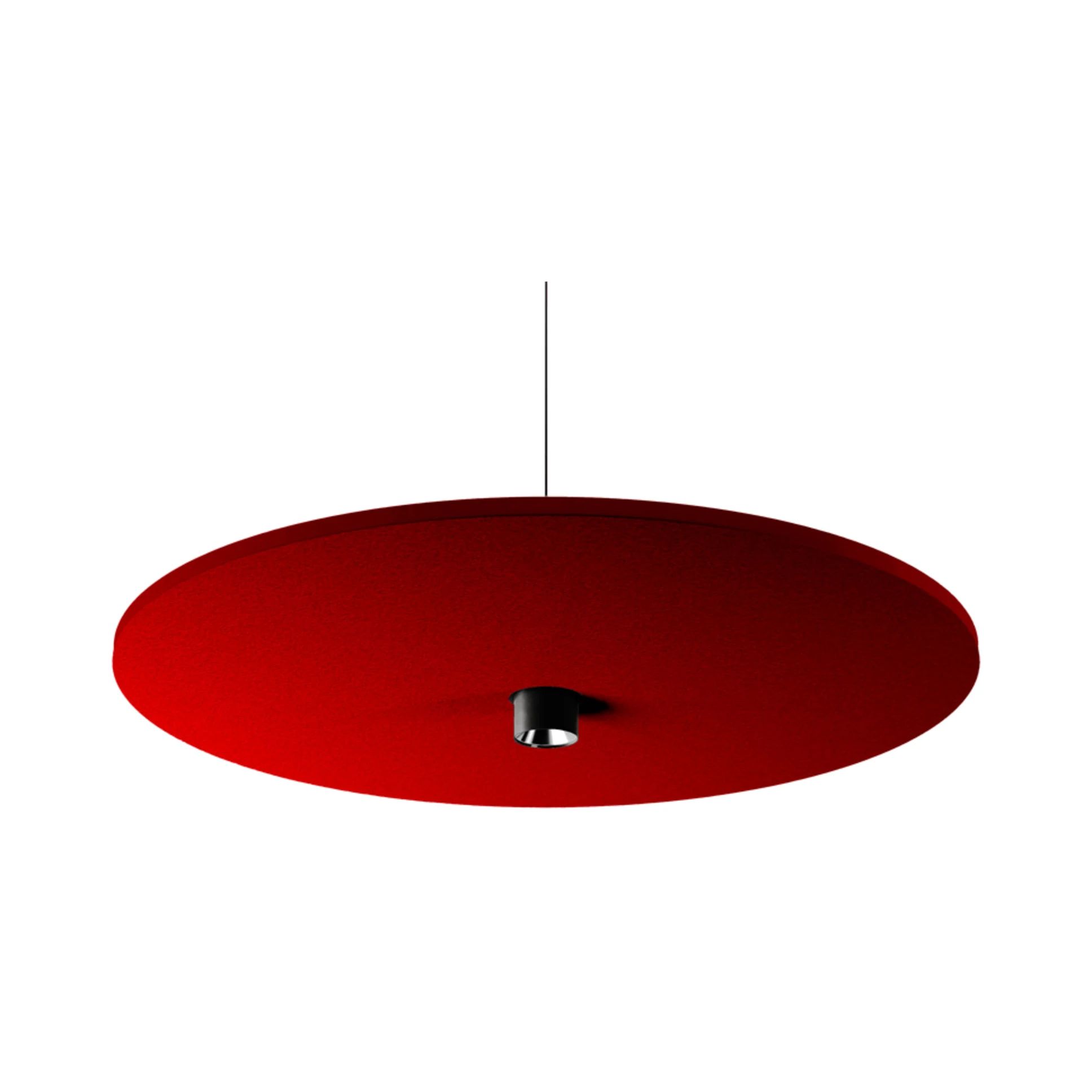

Tube 90 Acoustic 1200
A sound-absorbing 90mm cylindrical LED pendant downlight combined with a class a pet fibre acoustic raft in 800mm or 1200mm diameters, delivering 940–2,120 lm with 20°, 30° or 50° beams, in white or black with a DALI dimming option.
Available Finishes
White
Black
Any RAL
Features
5 Year Warranty
Any RAL Colour
Smart Controls
Made in Britain
CE Marked
UKCA Marked
Downloads
Specification
Colour Rendering (Ra)80
Colour Temperature (K)3000 - 4000
Electrical ClassI
Ingress Protection20
Life (>hours)50,000
Life RatingL70 / B10
Luminaire Efficacy (Llm/tcw)Up to 131.4
Luminaire Output (Llm)941 - 2116
Luminaire Power (Tcw)7.2 - 16.1
Macadam (SDCM)3
Mains Voltage (V)220-240
Mains Frequency (Hz)50-60
Warranty (years)5
Acoustic specification
Acoustic RatingClass A
CompositionMinimum 65% post-consumer recycled polyester fibres
Fire SpecificationAstm E84-2019 class a | EN 13501-1:2007+A1:2009 Class B-s1, d0
Panel Thickness (mm)24
Plastic Bottles per Sheet355
Recyclable Content (%)100%
Voc Emissions<0.02 mg/m²
Weight (Kg/m²)3.8
Luminaire Options
ColourWhite | Black | Any RAL
Colour Temperature3000 | 4000
Optics20° | 30° | 50°
DriverFixed output | Dali | Dsi | Switch dim | Wireless
Acoustic Colours28 Colours available

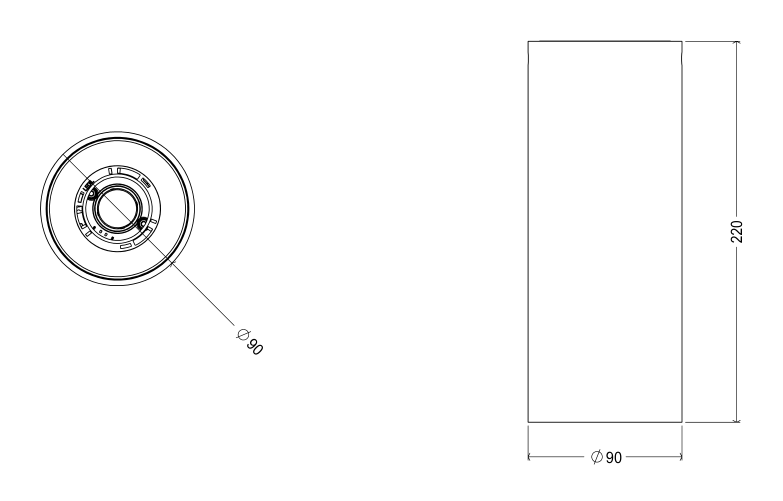

Dimensions
| Height (mm) | 220 |
| Diameter (mm) | 90 |
Technical Data
Filter by specification to find the right variant. Click a product code to download its datasheet.
| Code | Output | CCT | Colour | Optic | Driver | Wattage | Efficacy | Schedule |
|---|---|---|---|---|---|---|---|---|
| 941 | 3000 | Black | 20° | Fixed | 7.2 | 130.7 | ||
| 941 | 3000 | Black | 20° | Dali | 7.2 | 130.7 | ||
| 941 | 3000 | Black | 30° | Fixed | 7.2 | 130.7 | ||
| 941 | 3000 | Black | 30° | Dali | 7.2 | 130.7 | ||
| 941 | 3000 | Black | 50° | Fixed | 7.2 | 130.7 | ||
| 941 | 3000 | Black | 50° | Dali | 7.2 | 130.7 | ||
| 941 | 3000 | Black | 20° | Fixed | 7.2 | 130.7 | ||
| 941 | 3000 | Black | 20° | Dali | 7.2 | 130.7 | ||
| 941 | 3000 | Black | 30° | Fixed | 7.2 | 130.7 | ||
| 941 | 3000 | Black | 30° | Dali | 7.2 | 130.7 | ||
| 941 | 3000 | Black | 50° | Fixed | 7.2 | 130.7 | ||
| 941 | 3000 | Black | 50° | Dali | 7.2 | 130.7 |
Showing 1–12 of 288 filtered variants (288 total)
Show
Page 1 of 24Suitable Applications
EducationHospitalityOfficeRetail
Need a Specification?
Our technical team can provide bespoke specifications, photometric data and project support.
